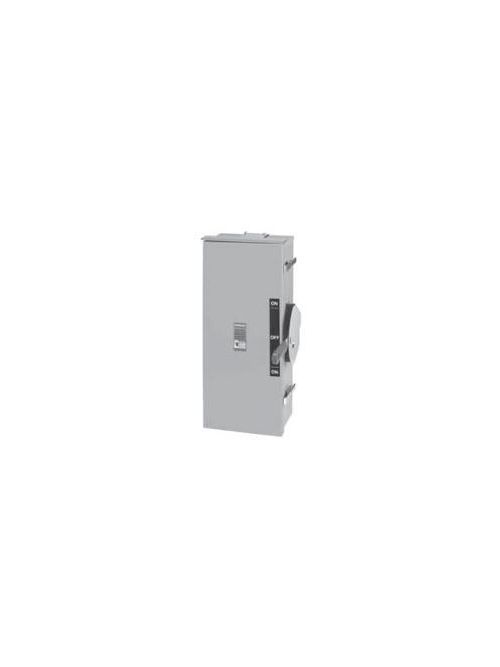

Siemens Industry DTF224R 240 VAC 200 Amp 2-Pole 3-Wire NEMA 3R Heavy Duty Fusible Safety Switch

Features

• 200 Amp, 2 pole, 240-Volt, fusible safety switch
• NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing
• Quick-make and break switching action
• Double break visible blade design
• Highly visible on/off indication
• Modular design allows quick and easy replacement of parts
• Front removable lugs which can easily be converted to copper body or compression type lugs
• Defeatable dual cover interlock
• All copper current carrying parts
• Tangential knockouts

Specifications

• Certificate of suitability: UL98
• Ampacity: 200 A
• Supply voltage frequency rated value 50/60 Hz: TRUE
• Ambient temperature during operation minimum: -29 degC
• Ambient temperature during operation maximum: 85 degC
• Mounting type: SURFACE
• Suitability for operation: LOAD TRANSFER BETWEEN POWER SOURCES
• Number of poles: 2
• Mechanical service life (switching cycles) typical: 8000
• Design of the operating mechanism: DOUBLE THROW
• Design of the housing: NEMA 3R
• Material: STEEL
• Type of electrical connection: MECHANICAL LUGS
• Product brand name: SIEMENS
• Product type designation: DOUBLE THROW SWITCH
• Product sub brand name: VBII
