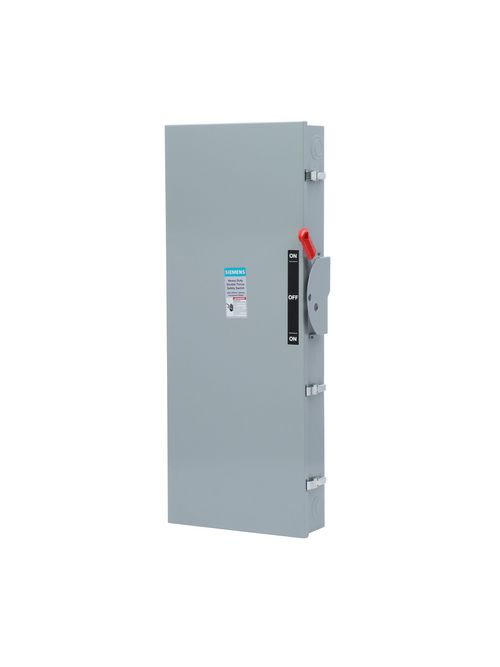

S-A DTF324 DTSS FUS 3P3W 240V 200A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$2,372.92/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # DTF324
North Coast Part # 549589

Features

  • Quick-make and break switching action

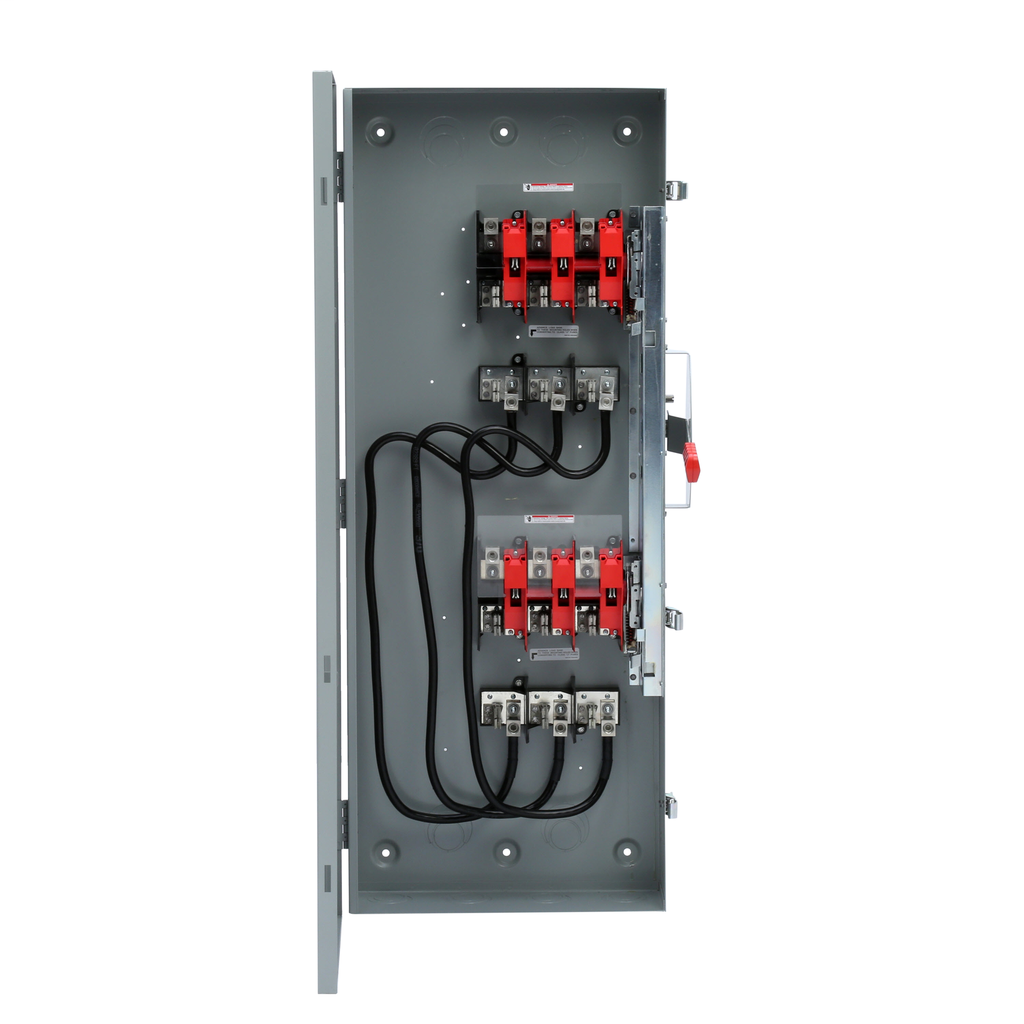

  • Double break visible blade design
  • Highly visible ON/OFF indication
  • Modular design allows quick and easy replacement of parts

Specifications

  • Certificate of suitability: UL98
  • Ampacity: 200 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: LOAD TRANSFER BETWEEN POWER SOURCES
  • Number of poles: 3
  • Mechanical service life (switching cycles) typical: 8000
  • Design of the operating mechanism: DOUBLE THROW
  • Design of the housing: NEMA 1
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: DOUBLE THROW SWITCH
  • Product sub brand name: VBII

Overview

UPC 78364345385
Item Long Description Double Throw switches are intended to transfer loads from one power source to another. All 2 and 3-pole double throw switches are suitable for use as service equipment including non-fusible versions when used in combination with a UL listed circuit breaker or fusible switch. All are UL Listed and both horsepower and load break rated. Switches are rated for use on systems up to 10,000 Amp when protected with Class H fuses or 100,000 Amp when protected with Class R or Class T fuses. They can also be used to connect a single source of power to either of 2 loads.
GTiN 00783643453852
Operating Temperature -20 To 120 F
Voltage 240 Volt
Type DOUBLETHROWSWITCH
Material Steel
Mounting Type SURFACE
Frequency 60 Hz
Wattage 3 Watt
Family Brand Name Siemens
Insulated? No
Amperage 200 Amp
Number of Poles 3 Pole
Enclosure NEMA1
Action DOUBLE THROW
Operating Cycles 8000
Ambient Temperature -29 C
Applications LOADTRANSFERBETWEENPOWERSOURCES
TC Connection MECHANICALLUGS
Actuator DOUBLETHROW
Sub Brand VBII
