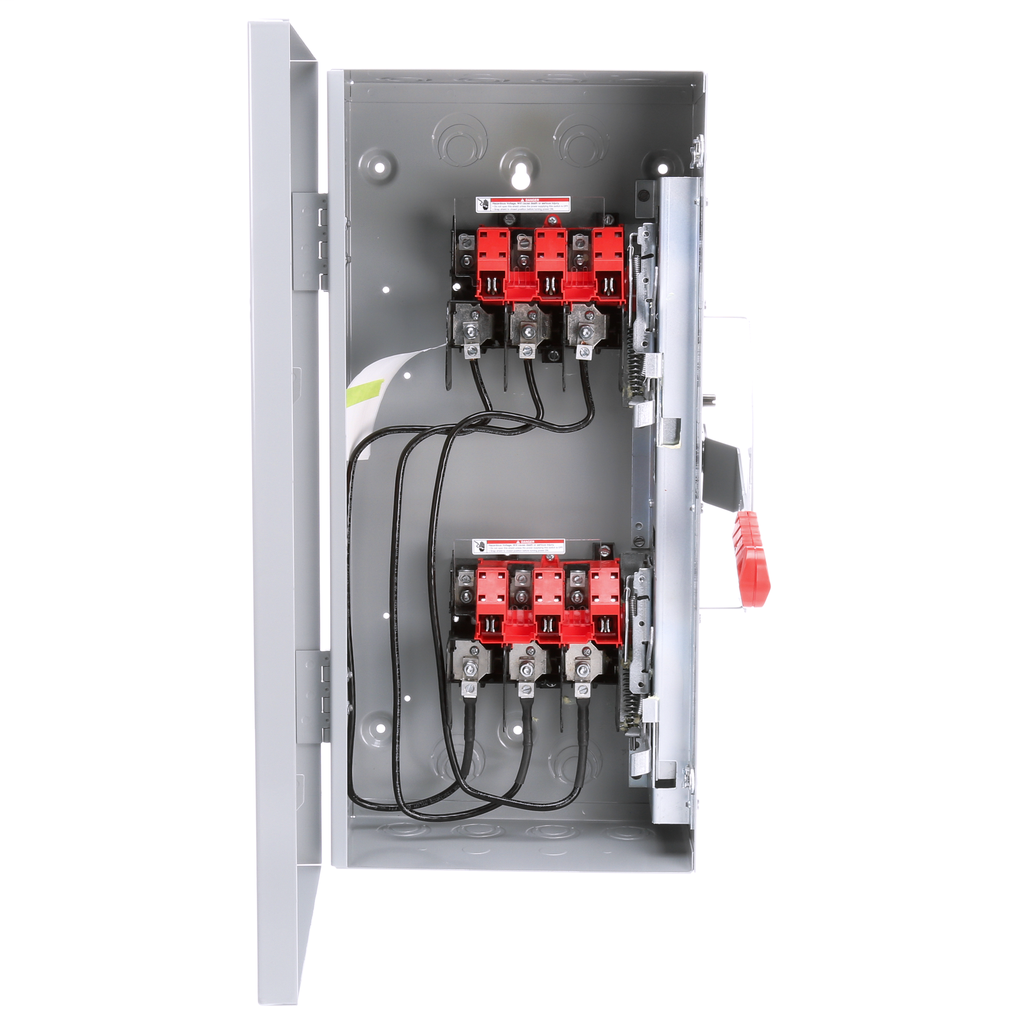

Siemens Industry DTNF322 240 VAC 60 Amp 3-Pole 3-Wire NEMA 1 Heavy Duty Non-Fusible Safety Switch

Features

• 60 Amp, single phase, 3 wire, 3 pole, non-fusible safety switch
• Quick-make and break switching action
• Double break visible blade design
• Highly visible on/off indication
• Modular design allows quick and easy replacement of parts
• Front removable lugs which can easily be converted to copper body or compression type lugs
• Defeatable dual cover interlock
• All copper current carrying parts
• Tangential knockouts
• Handle is padlockable in off position

Specifications

• Certificate of suitability: UL98
• Ampacity: 60 A
• Supply voltage frequency rated value 50/60 Hz: TRUE
• Ambient temperature during operation minimum: -29 degC
• Ambient temperature during operation maximum: 85 degC
• Mounting type: SURFACE
• Suitability for operation: LOAD TRANSFER BETWEEN POWER SOURCES
• Number of poles: 3
• Mechanical service life (switching cycles) typical: 10000
• Design of the operating mechanism: DOUBLE THROW
• Design of the housing: NEMA 1
• Material: STEEL
• Type of electrical connection: MECHANICAL LUGS
• Product brand name: SIEMENS
• Product type designation: DOUBLE THROW SWITCH
• Product sub brand name: VBII
