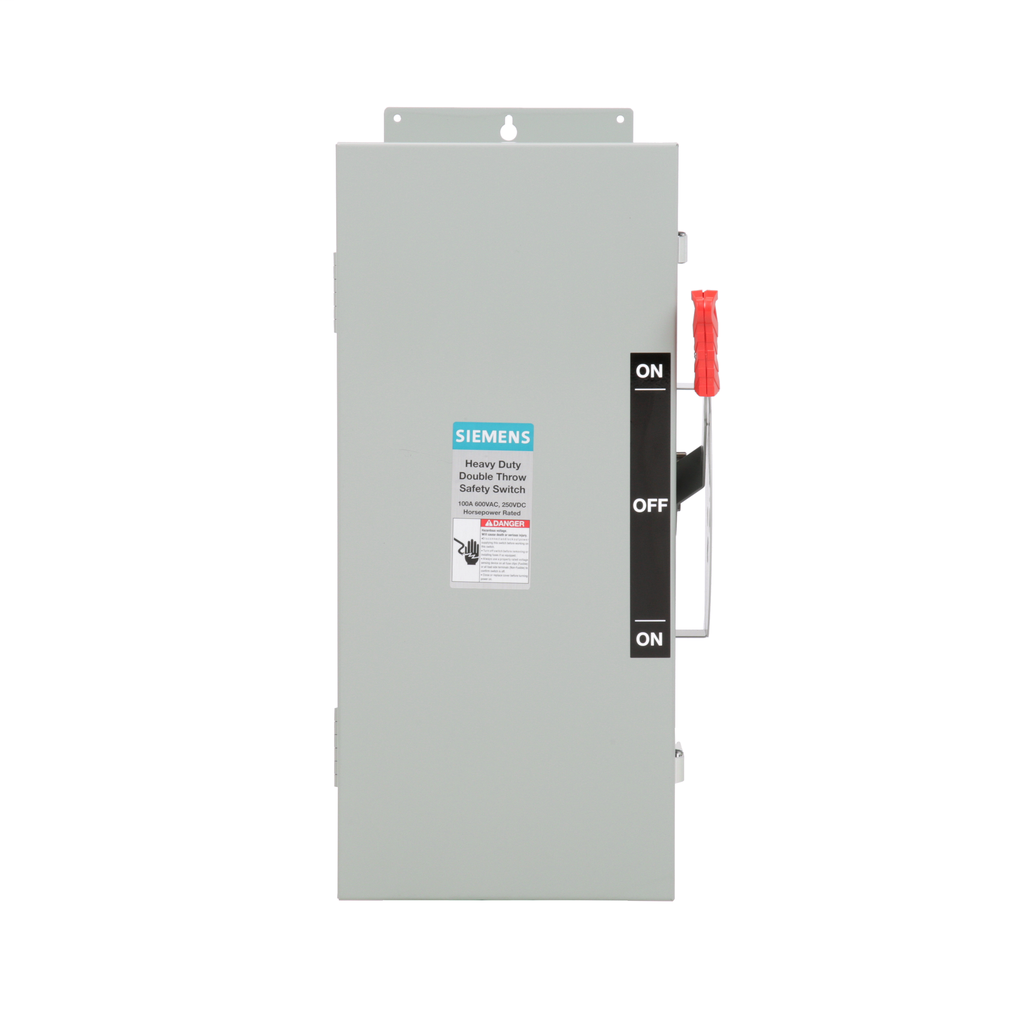

S-A DTNF363J DTSS NF 3P3W 600V 100A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$1,366.19/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # DTNF363J
North Coast Part # 605251

Features

  • 100 Amp, 3 pole, 600-Volt, non-fusible safety switch
  • NEMA type 12: enclosure is intended for indoor use primarily to provide a degree of protection against dust, falling dirt and dripping water, they are not intended to provide protection against conditions such as internal condensation
  • Quick-make and break switching action
  • Double break visible blade design
  • Highly visible on/off indication
  • Modular design allows quick and easy replacement of parts
  • Front removable lugs which can easily be converted to copper body or compression type lugs
  • Defeatable dual cover interlock
  • All copper current carrying parts
  • Tangential knockouts

Specifications

  • Certificate of suitability: UL98
  • Ampacity: 100 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: LOAD TRANSFER BETWEEN POWER SOURCES
  • Number of poles: 3
  • Mechanical service life (switching cycles) typical: 10000
  • Design of the operating mechanism: DOUBLE THROW
  • Design of the housing: NEMA 12
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: DOUBLE THROW SWITCH
  • Product sub brand name: VBII

Overview

UPC 78364345430
GTiN 00783643454309
Operating Temperature -20 To 120 F
Voltage 600 Volt
Type DOUBLETHROWSWITCH
Material Steel
Mounting Type SURFACE
Frequency 60 Hz
Wattage 3 Watt
Family Brand Name Siemens
Insulated? Yes
Amperage 100 Amp
Number of Poles 3 Pole
Enclosure NEMA12
Action DOUBLE THROW
Operating Cycles 10k
Ambient Temperature -29 C
Applications LOADTRANSFERBETWEENPOWERSOURCES
TC Connection MECHANICALLUGS
Actuator DOUBLETHROW
Sub Brand VBII
