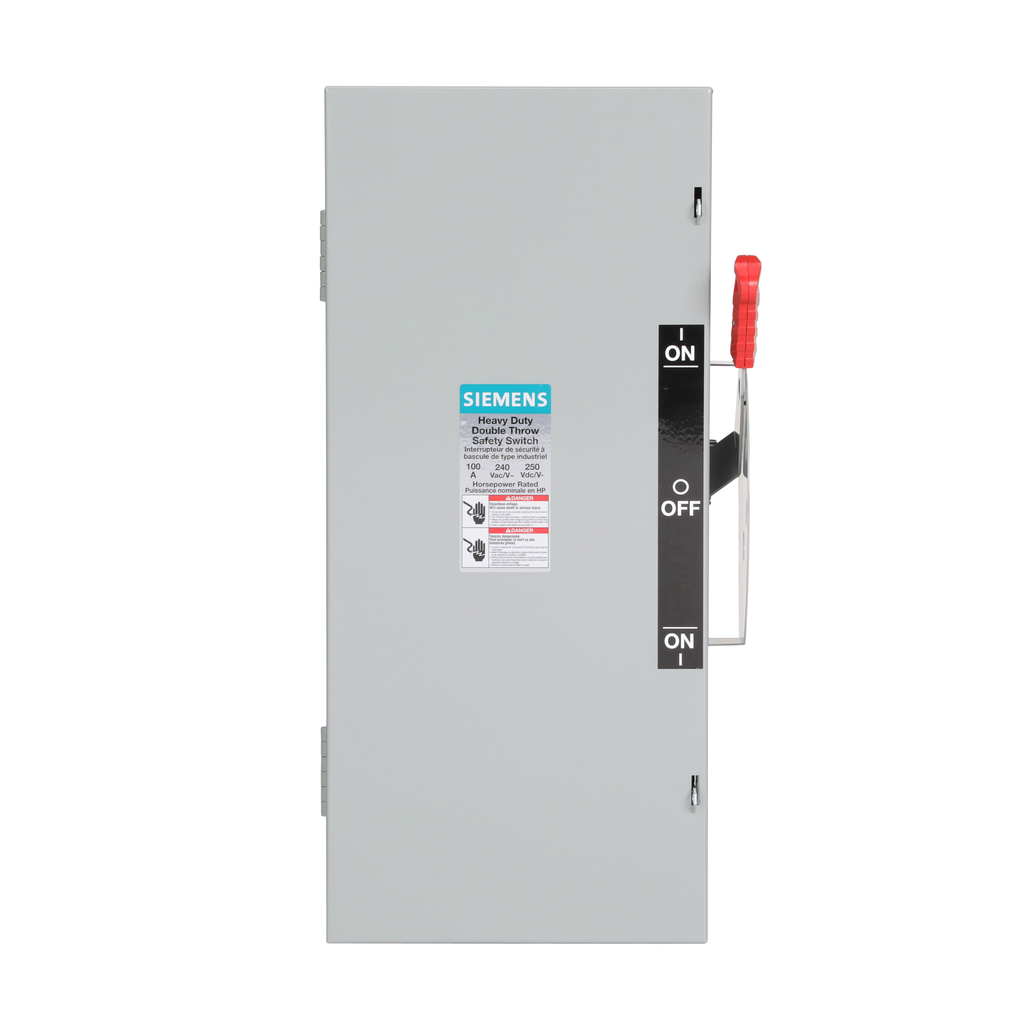

Siemens Ca DTNFC223 CSA 100A 2P 240
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 6 to 10 Days
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # DTNFC223
North Coast Part # 1832162


  • Certificate of suitability: UL98 / CSA
  • Ampacity: 100 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: LOAD TRANSFER BETWEEN POWER SOURCES
  • Number of poles: 2
  • Mechanical service life (switching cycles) typical: 10000
  • Design of the operating mechanism: DOUBLE THROW
  • Design of the housing: NEMA 1
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: DOUBLE THROW SWITCH
  • Product sub brand name: VBII


UPC 78364345457
GTiN 00783643454576
Operating Temperature -20 To 120 F
Voltage 240 Volt
Type Enclosed, Non-Fused, Double Throw
Material Steel
Mounting Type 2 or 3 Point Hole
Frequency 60 Hz
Wattage 2 Watt
Temperature Rating -20 to 120 F Ambient
Family Brand Name Siemens
Insulated? No
Housing Material Steel
Amperage 100 Amp
Number of Poles 2 Pole
Load Rating 2 W
Enclosure NEMA1
Operating Cycles 10000
Ambient Temperature -29 C
Sub Brand VBII
