S-A E1SFD63B175 BREAKER ENC1S 3P 17

$2,959.69/ea

Usually ships within 6 to 10 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

Adjustable pick-up value current of instantaneous short-circuit trip unit Full-scale value: 2000 A
Adjustable pick-up value current of instantaneous short-circuit trip unit initial value: 900 A
Certificate of suitability: UL489 / IEC 60947-2
Type of electrical connection for main current circuit: MECHANICAL LUGS
Continuous current rated value: 175 A
Ambient temperature during operation minimum: -25 degC
Ambient temperature during operation maximum: 75 degC
Operating voltage rated value maximum: 600 V
Mounting type: SURFACE
Design of the housing: NEMA 1
Size of the circuit-breaker: FD (250A)
Material of the enclosure: STEEL
Height [in]: 38.41 in
Width [in]: 11.47 in
Depth [in]: 5.06 in
Protective function of the overcurrent release: LI
Suitability for use: OVERLOAD AND SHORT CIRCUIT LINE PROTECTION
Design of the product: FD
Design of the overcurrent release: THERMAL - MAGNETIC
Product brand name: SIEMENS
Number of poles: 3

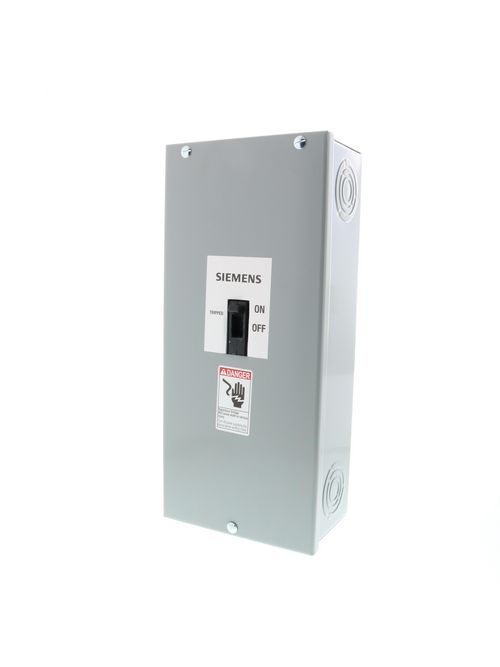

Product designation: MOLDED CASE CIRCUIT BREAKER
Special product feature: INTERCHANGEABLE TRIP UNIT
Product sub brand name: SENTRON
Trip class: STANDARD
