S-A E3RED63B015 BREAKER ENC3R 3P 15
$1,623.13/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # E3RED63B015
North Coast Part # 600922

Specifications

  • Certificate of suitability: UL489 / IEC 60947-2
  • Type of electrical connection for main current circuit: MECHANICAL LUGS
  • Continuous current rated value: 15 A
  • Ambient temperature during operation minimum: -25 degC
  • Ambient temperature during operation maximum: 75 degC
  • Operating voltage rated value maximum: 600 V
  • Mounting type: SURFACE
  • Design of the housing: NEMA 3R
  • Size of the circuit-breaker: ED (125A)
  • Material of the enclosure: STEEL
  • Height [in]: 17.56 in
  • Width [in]: 7.25 in
  • Depth [in]: 5.25 in
  • Protective function of the overcurrent release: LI
  • Suitability for use: OVERLOAD AND SHORT CIRCUIT LINE PROTECTION
  • Design of the product: ED
  • Design of the overcurrent release: THERMAL - MAGNETIC
  • Product brand name: SIEMENS
  • Number of poles: 3
  • Product designation: MOLDED CASE CIRCUIT BREAKER
  • Product sub brand name: SENTRON
  • Trip class: STANDARD
  • Maximum short-circuit current breaking capacity (Icu) at 480 V acc. to NEMA rated value: 25 kA
  • Maximum short-circuit current breaking capacity (Icu) at 600 V acc. to NEMA rated value: 18 kA
  • Maximum short-circuit current breaking capacity (Icu) at 240 V acc. to NEMA rated value: 65 kA

Categories

Overview

UPC 78364328520

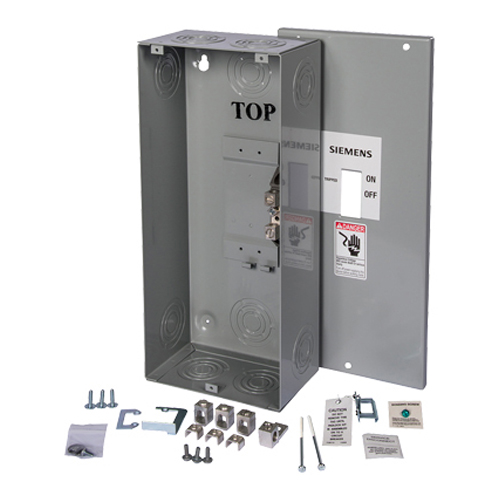

Item Long Description SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 15A 3-POLE 600V STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY (ED63B015). NON-INTERCHANGEABLE TRIP UNIT. NEMA TYPE 3R ENCLOSURE (E2N3R) WITH NEUTRAL (W53045). INCLUDES LINE AND LOAD SIDELUGS (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). ENCLOSURE DIMENSIONS (W x H x D) IN 7.25 x 17.56 x 5.25.
GTiN 00783643285200
Length 18.000
Width 7.25 in
Operating Temperature -25 To 75 C
Voltage 600 Volt
Type ED6
Mounting Type SURFACE
Depth 5.25 in
Height 17.56 in
Frequency 50/60 Hz
Family Brand Name Siemens
Frame ED
Enclosure Material STEEL
Trip Type THERMAL MAGNETIC
Number of Poles 3 Pole
Interrupt Rating 18 kA
Enclosure TYPE 3R
Ambient Temperature -25 C
Sub Brand SENTRON
