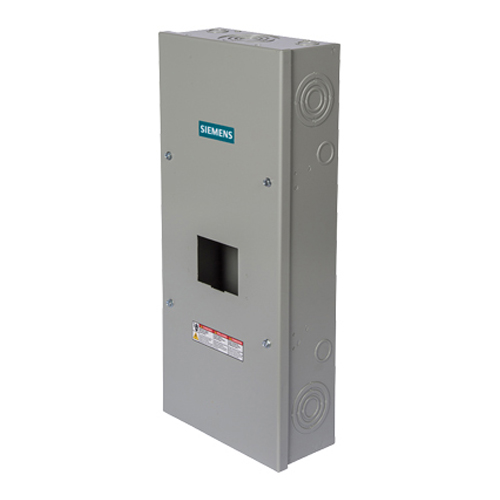

S-A E3RFD63B100 BREAKER ENC3R 3P 10
$4,003.98/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # E3RFD63B100
North Coast Part # 998358

Specifications

  • Adjustable pick-up value current of instantaneous short-circuit trip unit Full-scale value: 1200 A
  • Adjustable pick-up value current of instantaneous short-circuit trip unit initial value: 700 A
  • Certificate of suitability: UL489 / IEC 60947-2
  • Type of electrical connection for main current circuit: MECHANICAL LUGS
  • Continuous current rated value: 100 A
  • Ambient temperature during operation minimum: -25 degC
  • Ambient temperature during operation maximum: 75 degC
  • Operating voltage rated value maximum: 600 V
  • Mounting type: SURFACE
  • Design of the housing: NEMA 3R
  • Size of the circuit-breaker: FD (250A)
  • Material of the enclosure: STEEL
  • Height [in]: 38.13 in
  • Width [in]: 14.06 in
  • Depth [in]: 7.75 in
  • Protective function of the overcurrent release: LI
  • Suitability for use: OVERLOAD AND SHORT CIRCUIT LINE PROTECTION
  • Design of the product: FD
  • Design of the overcurrent release: THERMAL - MAGNETIC
  • Product brand name: SIEMENS
  • Number of poles: 3
  • Product designation: MOLDED CASE CIRCUIT BREAKER
  • Special product feature: INTERCHANGEABLE TRIP UNIT
  • Product sub brand name: SENTRON
  • Trip class: STANDARD

Categories

Overview

UPC 78364329328
Item Long Description SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 100A 3-POLE 600V STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY (FD63B100). INTERCHANGEABLE TRIP UNIT. NEMATYPE 3R ENCLOSURE (F6N3R). ORDER NEUTRAL (N250). INCLUDES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). ENCLOSUREDIMENSIONS (W x H x D) IN 14.06 x 38.13 x 7.75.
GTiN 00783643293281
Length 39.000
Width 14.06 in
Operating Temperature -25 To 75 C
Voltage 600 Volt
Type FD6
Mounting Type SURFACE
Depth 7.75 in
Height 38.13 in
Frequency 50/60 Hz
Family Brand Name Siemens
Frame FD
Enclosure Material STEEL
Trip Type THERMAL MAGNETIC
Number of Poles 3 Pole
Interrupt Rating 22 kA
Enclosure TYPE 3R
Ambient Temperature -25 C
Sub Brand SENTRON
