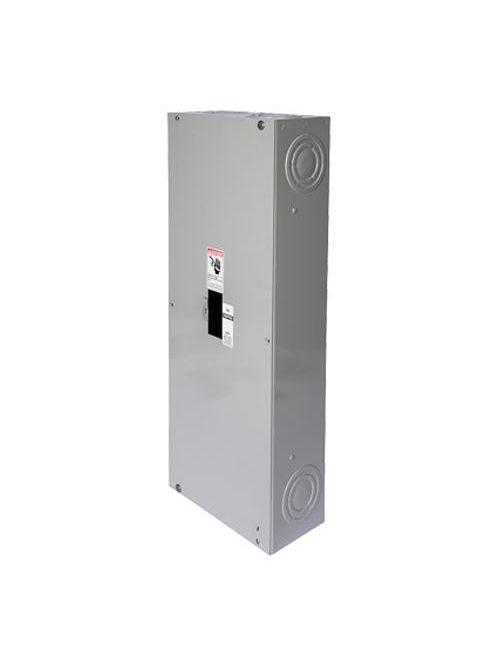

S-A E4XLXD63B500 ENCL4X BRKR LD6 3P
Product image thumbnail 0
Product image thumbnail 1
$18,969.38/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # E4XLXD63B500
North Coast Part # 1011789

Specifications

  • Adjustable pick-up value current of instantaneous short-circuit trip unit Full-scale value: 6000 A
  • Adjustable pick-up value current of instantaneous short-circuit trip unit initial value: 3000 A
  • Certificate of suitability: UL489 / IEC 60947-2
  • Type of electrical connection for main current circuit: MECHANICAL LUGS
  • Continuous current rated value: 500 A
  • Ambient temperature during operation minimum: -25 degC
  • Ambient temperature during operation maximum: 75 degC
  • Operating voltage rated value maximum: 600 V
  • Mounting type: SURFACE
  • Design of the housing: NEMA 4X
  • Size of the circuit-breaker: LD (600A)
  • Material of the enclosure: STAINLESS STEEL
  • Height [in]: 42 in
  • Width [in]: 30 in
  • Depth [in]: 10 in
  • Protective function of the overcurrent release: LI
  • Suitability for use: OVERLOAD AND SHORT CIRCUIT LINE PROTECTION
  • Design of the product: LD
  • Design of the overcurrent release: THERMAL - MAGNETIC
  • Product brand name: SIEMENS
  • Number of poles: 3
  • Product designation: MOLDED CASE CIRCUIT BREAKER
  • Product sub brand name: SENTRON
  • Trip class: STANDARD
  • Maximum short-circuit current breaking capacity (Icu) at 480 V acc. to NEMA rated value: 35 kA

Categories

Overview

UPC 78364329783
Item Long Description SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 500A 3-POLE 600V STANDARD 40 DEG C BREAKER LD FRAME WITH STANDARD BREAKING CAPACITY (LXD63B500). NON-INTERCHANGEABLE TRIP UNIT.NEMA TYPE 4X STAINLESS STEEL ENCLOSURE (LD6SS4). ORDER NEUTRAL (W60993). INCLUDES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG- 500KCMIL (AL). ENCLOSURE DIMENSIONS (W x H x D) IN 30.00 x 42.00 x 10.00.
GTiN 00783643297838
Length 45.000
Width 30 in
Operating Temperature -25 To 75 C
Voltage 600 Volt
Type LXD6
Mounting Type SURFACE
Depth 10 in
Height 42 in
Frequency 50/60 Hz
Family Brand Name Siemens
Frame LD
Enclosure Material STAINLESS STEEL
Trip Type THERMAL MAGNETIC
Number of Poles 3 Pole
Interrupt Rating 25 kA
Enclosure TYPE 4X
Ambient Temperature -25 C
Sub Brand SENTRON
