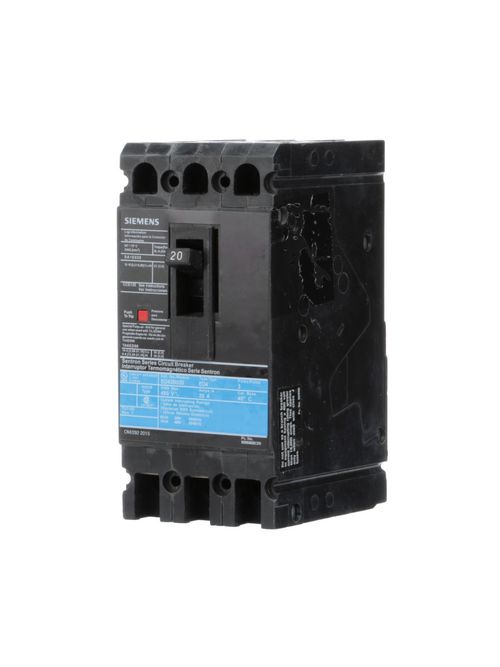

Siemens Industry ED43B020L 3-Pole 20 Amp 480 VAC 18 kA Circuit Breaker Lugs
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,355.21/ea
In Stock | 2 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # ED43B020L
North Coast Part # 65865

Categories

Overview

UPC 78364323612
Item Long Description SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 20A 3-POLE (18KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.
GTiN 00783643236127
Length 6.400
Width 15.100
Operating Temperature 40 C
Voltage 250 Volt
Type ED4
Applications Standard 40C Breaker
Height 20.1 in
Standard HACR
Frequency 50/60 Hz
Connection Type Line/Load Lugs Installed
Family Brand Name Siemens
Frame ED
TC Connection Line/Load lugs installed
Actuator Varying
Amperage 20 Amp
Trip Type Thermal-Magnetic
Number of Poles 3 Pole
Interrupt Rating 18 kA
Enclosure Varying
Sub Brand Sentron
Load Rating N/A
Trip Range N/A
