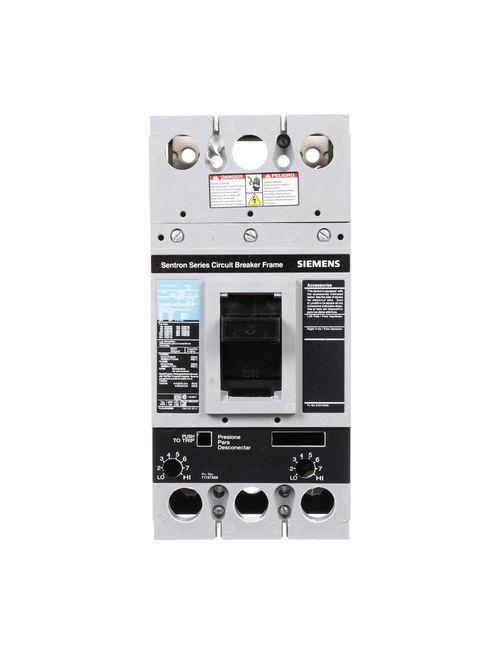

Siemens Ca FD62B200 FD,22kA@600V,2P
$1,030.75/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # FD62B200
North Coast Part # 543681
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 200A 2-POLE (22KAIC AT 600V) (35KAIC AT 480V). INTERCHANGEABLE TRIPUNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.

Categories

Overview

UPC 78364321138
Item Long Description SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 200A 2-POLE (22KAIC AT 600V) (35KAIC AT 480V). INTERCHANGEABLE TRIPUNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
GTiN 00783643211384
Length 7.000
Width 6.000
Operating Temperature 40 C
Voltage 250 Volt
Type FD6
Applications Standard 40C Breaker
Height 11 in
Standard HACR
Frequency 50/60 Hz
Family Brand Name Siemens
Frame FD
Actuator Varying
Amperage 200 Amp
Trip Type Thermal-Magnetic
Number of Poles 2 Pole
Interrupt Rating 22 kA
Enclosure Varying
Trip Range 900-2000
Sub Brand Sentron
TC Connection N/A
Load Rating N/A
