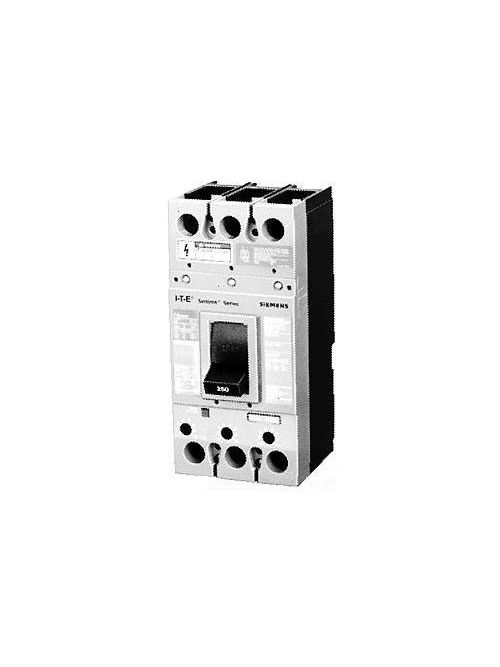

Siemens Industry FD63B100L 3-Pole 600 VAC 100 Amp 22 kA Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker

UPC	78364300528
Item Long Description	SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 100A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
GTiN	00783643005280
Length	7.000
Width	6.000
Operating Temperature	40 C
Voltage	600 Volt
Type	FD6
Applications	Standard 40C Breaker
Height	11 in
Standard	HACR,UL
Frequency	50/60 Hz
Connection Type	Line/Load Lugs Installed
Family Brand Name	Siemens
Frame	FD
TC Connection	Line/Load lugs installed
Actuator	Varying
Amperage	100 Amp
Trip Type	Thermal-Magnetic
Number of Poles	3 Pole
Interrupt Rating	22 kA
Enclosure	Varying
Trip Range	770-1200
Sub Brand	Sentron
Load Rating	N/A
