Siemens Ca FXD63B080 FD,22kA@600V,3
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,236.59/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # FXD63B080
North Coast Part # 670467

Categories

Overview

UPC 78364321120

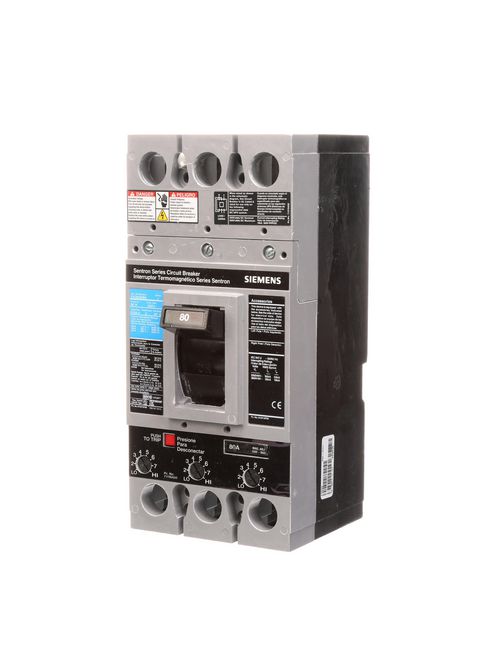

Item Long Description SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 80A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIPUNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
GTiN 00783643211209
Length 7.000
Width 6.000
Operating Temperature 40 C
Voltage 600 Volt
Type FXD6
Applications Standard 40C Breaker
Height 11 in
Standard HACR
Frequency 50/60 Hz
Family Brand Name Siemens
Frame FD
Actuator Varying
Amperage 80 Amp
Trip Type Thermal-Magnetic
Number of Poles 3 Pole
Interrupt Rating 22 kA
Enclosure Varying
Trip Range 900-900
Sub Brand Sentron
TC Connection N/A
Load Rating N/A
