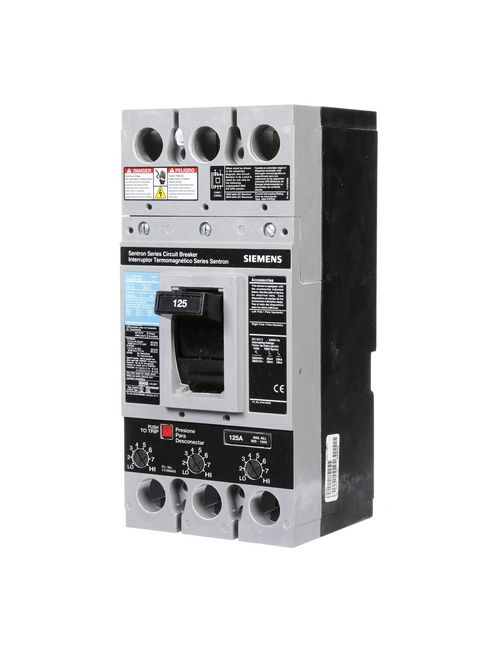

Siemens Industry FXD63B125 3-Pole 600 VAC 125 Amp 22 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$1,161.84/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # FXD63B125
North Coast Part # 491352

Overview

UPC 78364321124
GTiN 00783643211247
Length 6.900
Width 5.500
Operating Temperature 40 C
Voltage 600 Volt
Type FXD6, Standard
Applications Standard 40C Breaker
Height 11.3 in
Standard HACR
Frequency 50/60 Hz
Temperature Rating 40 C
Family Brand Name Siemens
Frame FD
Actuator Varying
Amperage 125 Amp
Blade Dimensions 6.9 in L x 5.5 in W x 11.3 in H
Trip Type Thermal Magnetic
Number of Poles 3 Pole
Interrupt Rating 22 kA
Enclosure Varying
Trip Range 800 - 1500
Sub Brand Sentron
TC Connection N/A
Load Rating N/A
