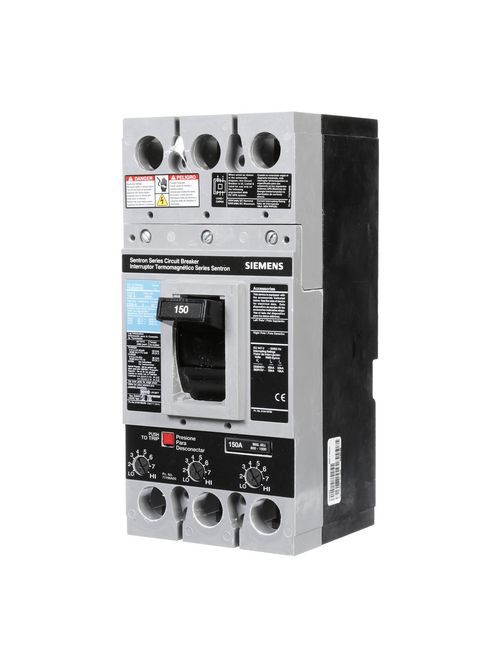

Siemens Industry FXD63B150L 3-Pole 150 Amp 600 VAC 22 kA ETI Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,307.61/ea
Usually ships within 34 to 56 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # FXD63B150L
North Coast Part # 491421
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 150A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.

Categories

Overview

UPC 78364300588
Item Long Description SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 150A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
GTiN 00783643005884
Length 7.000
Width 5.600
Operating Temperature 40 C
Voltage 600 Volt
Type FXD6
Applications Standard 40C Breaker
Height 11.1 in
Standard HACR
Frequency 50/60 Hz
Connection Type Line/Load Lugs Installed
Family Brand Name Siemens
Frame FD
TC Connection Line/Load lugs installed
Actuator Varying
Amperage 150 Amp
Trip Type Thermal-Magnetic
Number of Poles 3 Pole
Interrupt Rating 22 kA
Enclosure Varying
Trip Range 800-1500
Sub Brand Sentron
Load Rating N/A
