S-A G80-087 JOHNSTONE SUP HDSS NF 3
$357.77/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # G80-087
North Coast Part # 1158421

Specifications

  • Voltage between phase and Ground (GND) rated value: 600 V
  • Voltage between phase and phase rated value: 480 V
  • Ampacity: 60 A
  • Number of poles: 3
  • Supply voltage frequency rated value 50/60 Hz: Yes
  • Mechanical service life (switching cycles) typical: 10000
  • Product brandname: SIEMENS
  • Product type designation: ENCLOSED/SAFETY SWITCH
  • Certificate of suitability: UL
  • Manner of function of the actuating element: SINGLE THROW

Overview

UPC 78364320650

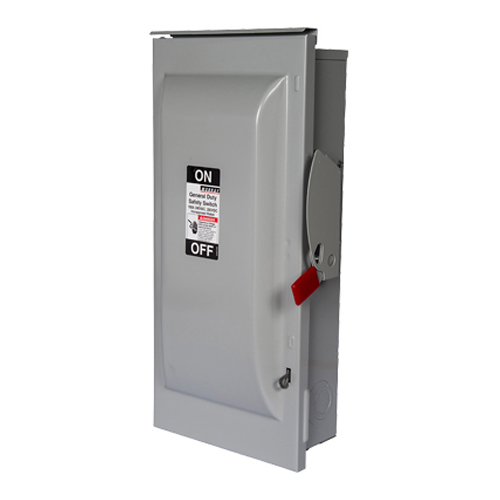

Item Long Description Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches - Type ENCLOSED / SAFETY SWITCH Meets stds UL. Built material 304SSsingle throw action. Rated600VAC/480VAC (60A) at 60Hz.3-Pole. Insulated. TYPE 3R enclosure with 2 or 3 point mounting. No special features listed.
GTiN 00783643206502
Operating Temperature -20 To 120 F
Voltage 480 Volt
Type ENCLOSED/SAFETYSWITCH
Material 304SS
Frequency 60 Hz
Family Brand Name Siemens
Insulated? No
Amperage 60 Amp
Number of Poles 3 Pole
Enclosure TYPE 3R
Action SINGLETHROW
Operating Cycles 10k
