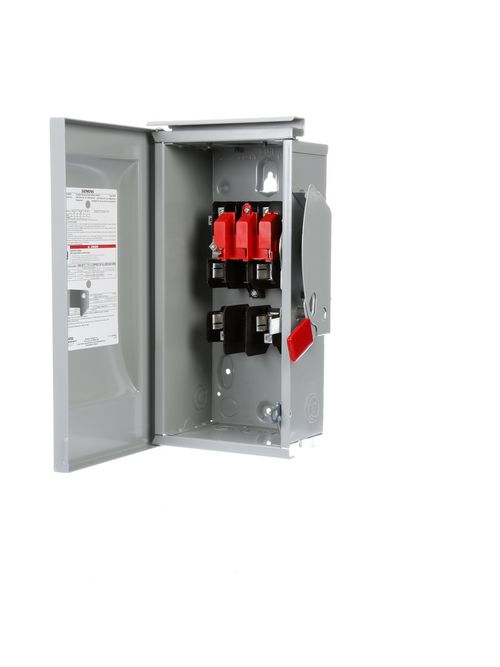

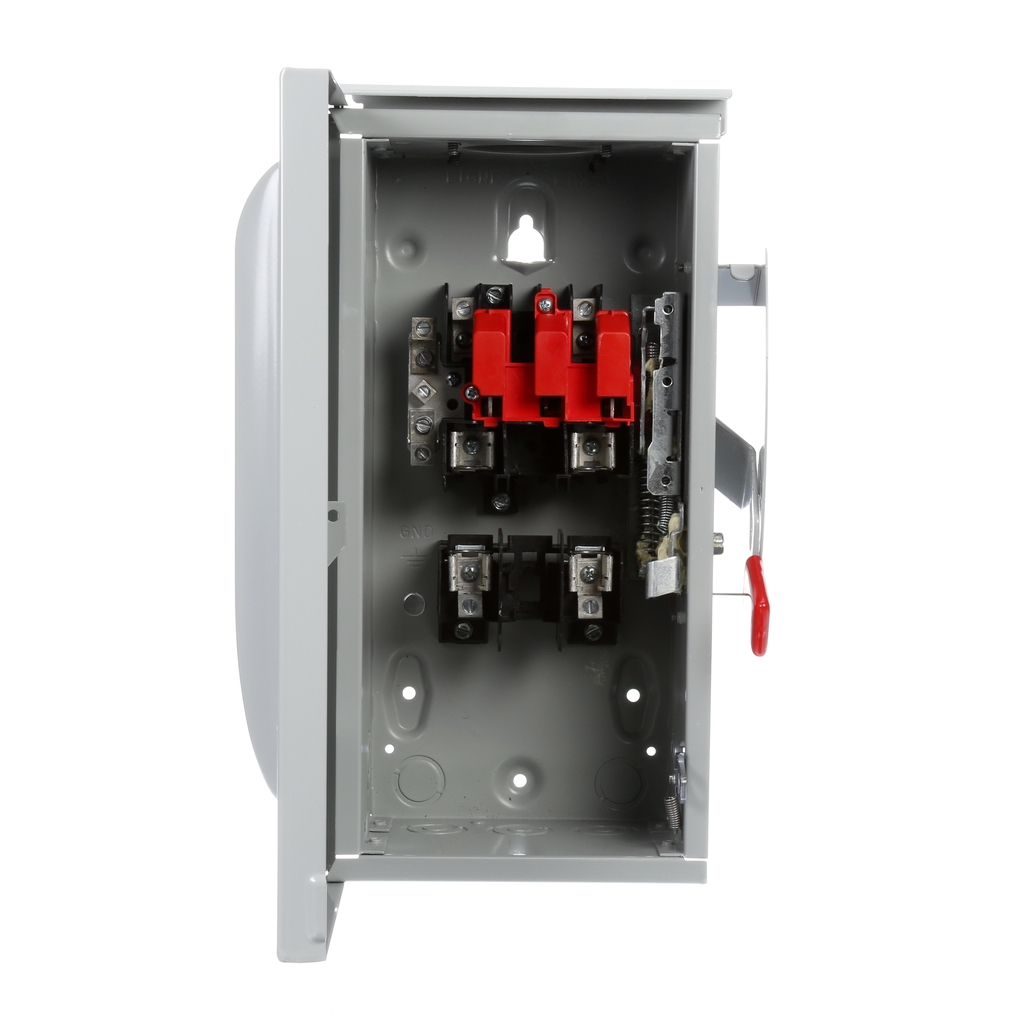

Siemens Industry GF222NR 240 VAC/250 VDC 60 Amp 2-Pole 3-Wire NEMA 3R General Duty Fusible Safety Switch

Features

• 120/240-Volt, single phase, 3 wire, fusible safety switch
• Quick-make, quick-break operating mechanism that ensures positive operation
• Generous wiring gutters that meet or exceed NEC wire-bending space requirements
• Visible blade, double-break switch action
• Highly visible on/off indication
• Single cover interlock
• Side-hinged door that opens 180? for easier wiring
• Unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installer's hands
• NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing

Specifications

• Certificate of suitability: UL98
• Ampacity: 60 A
• Supply voltage frequency rated value 50/60 Hz: TRUE
• Ambient temperature during operation minimum: -29 degC
• Ambient temperature during operation maximum: 85 degC
• Mounting type: SURFACE
• Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
• Number of poles: 2
• Mechanical service life (switching cycles) typical: 10000
• Design of the operating mechanism: SINGLE THROW
• Design of the housing: NEMA 3R
• Material: STEEL
• Type of electrical connection: MECHANICAL LUGS
• Product brand name: SIEMENS
• Product type designation: GENERAL DUTY SWITCH
• Product sub brand name: VBII
