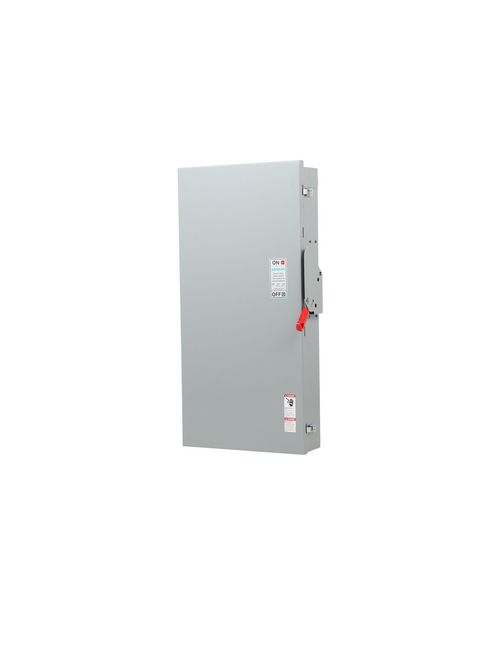

S-A GF326NA GDSS FUS 3P4W 240V 600A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$2,160.99/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # GF326NA
North Coast Part # 1278896

Features

  • 3-Pole, 240-Volt, 600 Amp fusible safety switch
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Generous wiring gutters that meet or exceed NEC wire-bending space requirements
  • Visible blade, double-break switch action
  • Highly visible on/off indication
  • Single cover interlock
  • Side-hinged door that opens 180? for easier wiring
  • Unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installer's hands
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist

Specifications

  • Certificate of suitability: UL98
  • Ampacity: 600 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
  • Number of poles: 3
  • Mechanical service life (switching cycles) typical: 5000
  • Design of the operating mechanism: SINGLE THROW
  • Design of the housing: NEMA 1
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: GENERAL DUTY SWITCH
  • Product sub brand name: VBII

Overview

UPC 88762187265
GTiN 00887621872656
Voltage 240 Volt
Type GENERALDUTYSWITCH
Material Steel
Applications DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Mounting Type SURFACE
Family Brand Name Siemens
Amperage 600 Amp
Number of Poles 3 Pole
Ambient Temperature -29 C
Sub Brand VBII
Operating Temperature -29 C
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
Enclosure NEMA1
Operating Cycles 5k
