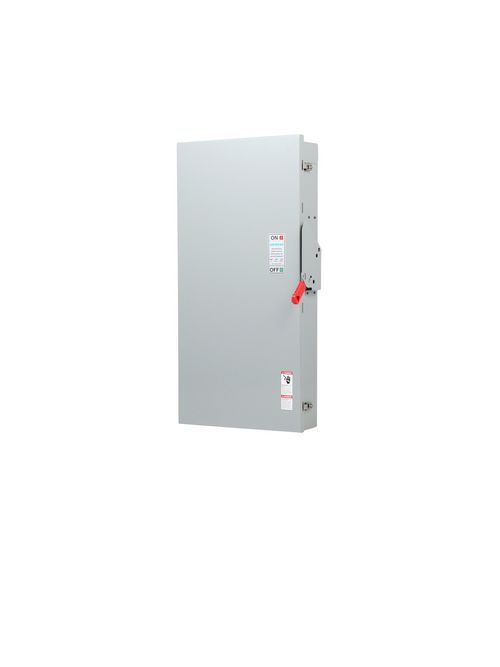

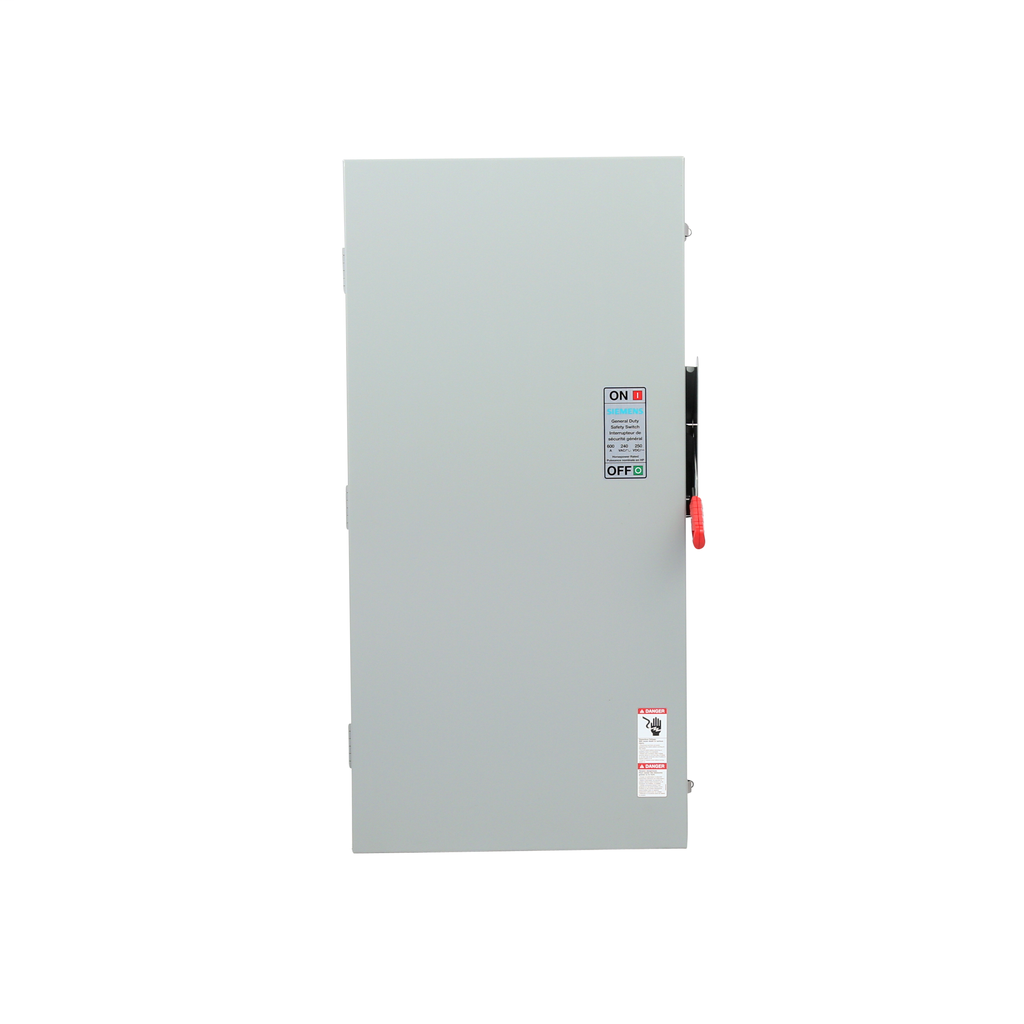

S-A GF326NRA GDSS FUS 3P4W 240V 600
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$3,380.51/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # GF326NRA
North Coast Part # 1354022

Features

  • 3-Pole, 240-Volt, 600 Amp fusible safety switch
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Generous wiring gutters that meet or exceed NEC wire-bending space requirements
  • Visible blade, double-break switch action
  • Highly visible on/off indication
  • Single cover interlock
  • Side-hinged door that opens 180? for easier wiring
  • Unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installer's hands
  • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing

Specifications

  • Certificate of suitability: UL98
  • Ampacity: 600 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
  • Number of poles: 3
  • Mechanical service life (switching cycles) typical: 5000
  • Design of the operating mechanism: SINGLE THROW
  • Design of the housing: NEMA 3R
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: GENERAL DUTY SWITCH
  • Product sub brand name: VBII

Overview

UPC 88762187254
Item Long Description General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240-Volt AC or less where the available fault current is less than 100,000 Amp when used with Class R or T fuses or 10,000 Amp max when used with Class H fuses.
GTiN 00887621872540
Voltage 240 Volt
Type GENERALDUTYSWITCH
Material Steel
Applications DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Mounting Type SURFACE
Family Brand Name Siemens
Amperage 600 Amp
Number of Poles 3 Pole
Ambient Temperature -29 C
Sub Brand VBII
Operating Temperature -29 C
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
Enclosure NEMA3R
Operating Cycles 5k
