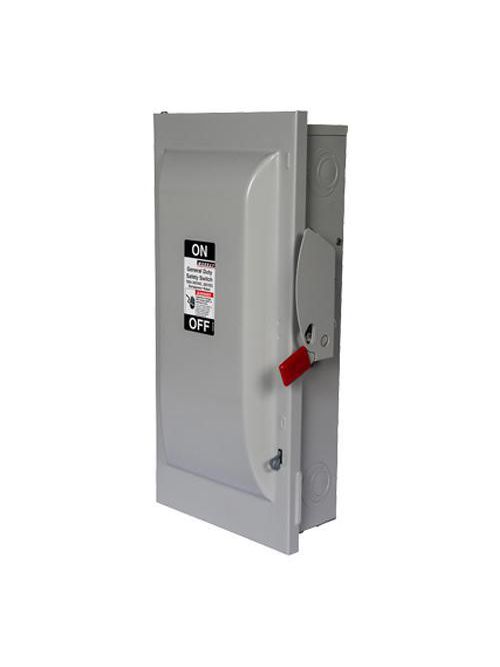

S-A GNF321U GDSS NF 3P3W 240V 30A N
$292.50/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # GNF321U
North Coast Part # 1158438

Specifications

  • Certificate of suitability: UL98
  • Ampacity: 30 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
  • Number of poles: 3
  • Mechanical service life (switching cycles) typical: 10000
  • Design of the operating mechanism: SINGLE THROW
  • Design of the housing: NEMA 1
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: GENERAL DUTY SWITCH
  • Special product feature: FACTORY INSTALLED COPPER LUGS
  • Product sub brand name: VBII

Overview

UPC 78364308153
GTiN 00783643081536
Operating Temperature -20 To 120 F
Voltage 240 Volt
Type GENERALDUTYSWITCH
Material Steel
Mounting Type SURFACE
Frequency 60 Hz
Family Brand Name Siemens
Insulated? No
Amperage 30 Amp
Number of Poles 3 Pole
Enclosure NEMA1
Action SINGLE THROW
Operating Cycles 10k
Ambient Temperature -29 C
Applications DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
Sub Brand VBII
