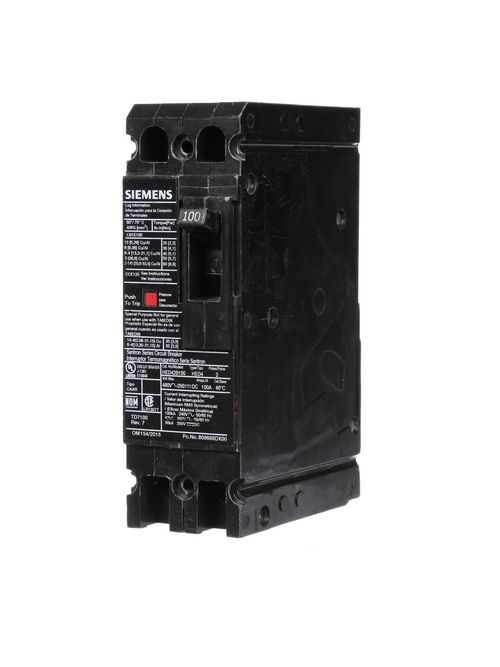

S-A HED42B100 BRKR HED4 2P 480V 100
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,073.81/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HED42B100
North Coast Part # 546648
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH HIGH BREAKING CAPACITY. 100A2-POLE (42KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 2.00 x 6.4 x 3.92.

Categories

Overview

UPC 78364321006
Item Long Description SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH HIGH BREAKING CAPACITY. 100A2-POLE (42KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 2.00 x 6.4 x 3.92.
GTiN 00783643210066
Length 6 in
Width 3.000
Operating Temperature 40 C
Voltage 480 Volt
Type HED4
Applications Standard 40C Breaker
Height 7 in
Standard HACR
Frequency 50/60 Hz
Family Brand Name Siemens
Frame ED
Actuator Varying
Amperage 100 Amp
Trip Type Thermal-Magnetic
Number of Poles 2 Pole
Interrupt Rating 42 kA
Enclosure Varying
Sub Brand Sentron
TC Connection N/A
Load Rating N/A
Trip Range N/A
