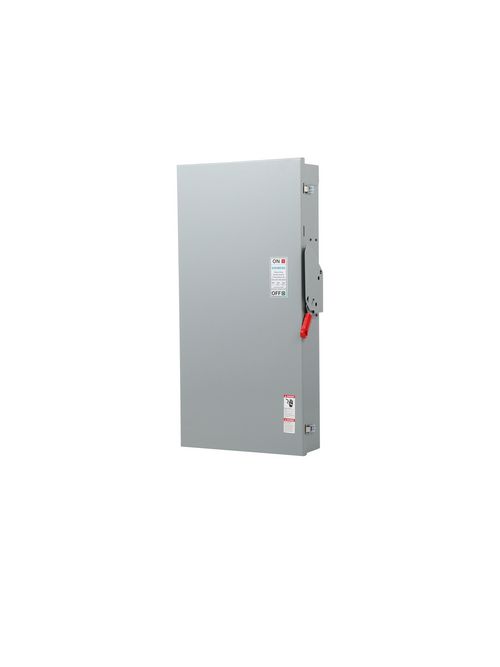

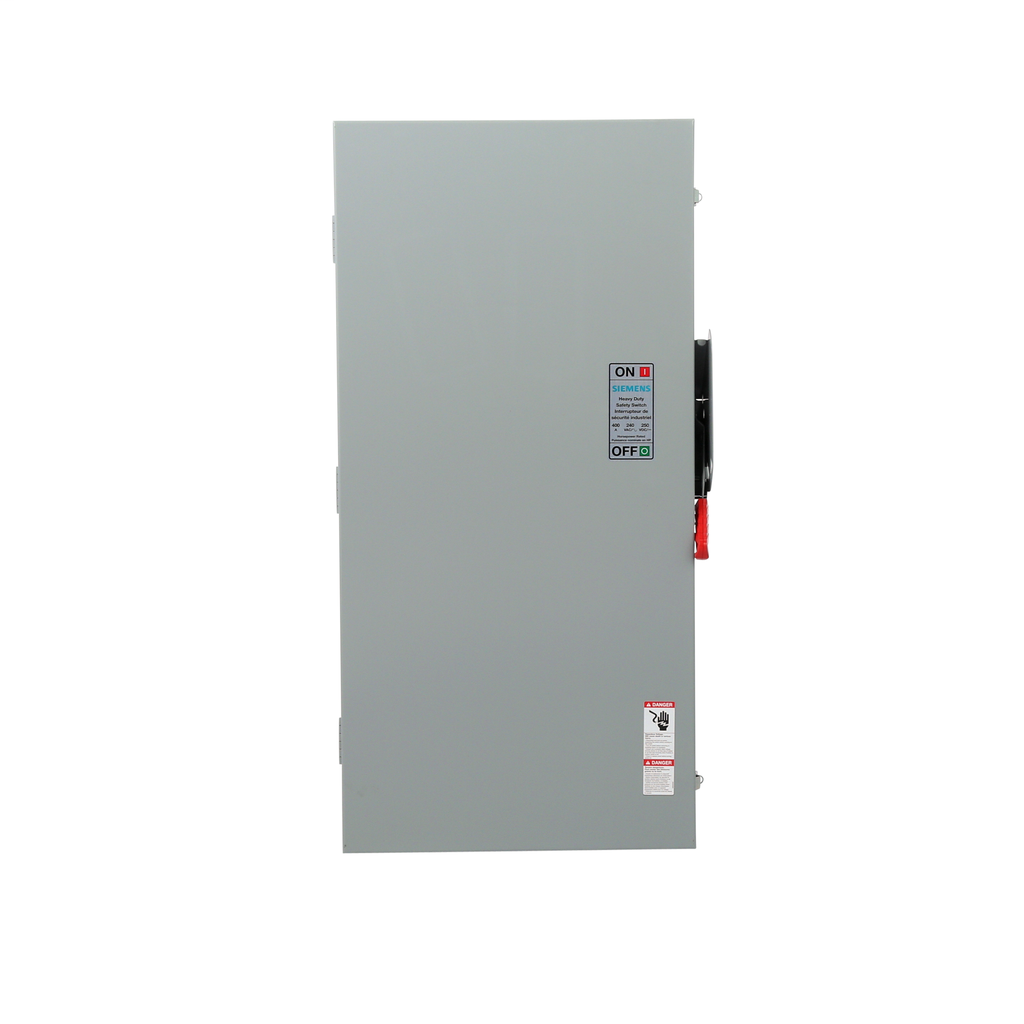

Siemens HF325NA 400 Amp 3-Pole 240 Volt Fused Heavy Duty Type 1 Safety Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,773.67/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HF325NA
North Coast Part # 1161594

Specifications

  • Certificate of suitability: UL98
  • Ampacity: 400 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
  • Number of poles: 3
  • Mechanical service life (switching cycles) typical: 6000
  • Design of the operating mechanism: SINGLE THROW
  • Design of the housing: NEMA 1
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: HEAVY DUTY SWITCH
  • Product sub brand name: VBII

Overview

UPC 88762187248
GTiN 00887621872489
Voltage 240 Volt
Type HEAVYDUTYSWITCH
Material Steel
Applications DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Mounting Type SURFACE
Family Brand Name Siemens
Amperage 400 Amp
Number of Poles 3 Pole
Ambient Temperature -29 C
Sub Brand VBII
Operating Temperature -29 C
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
Enclosure NEMA1
Operating Cycles 6000
