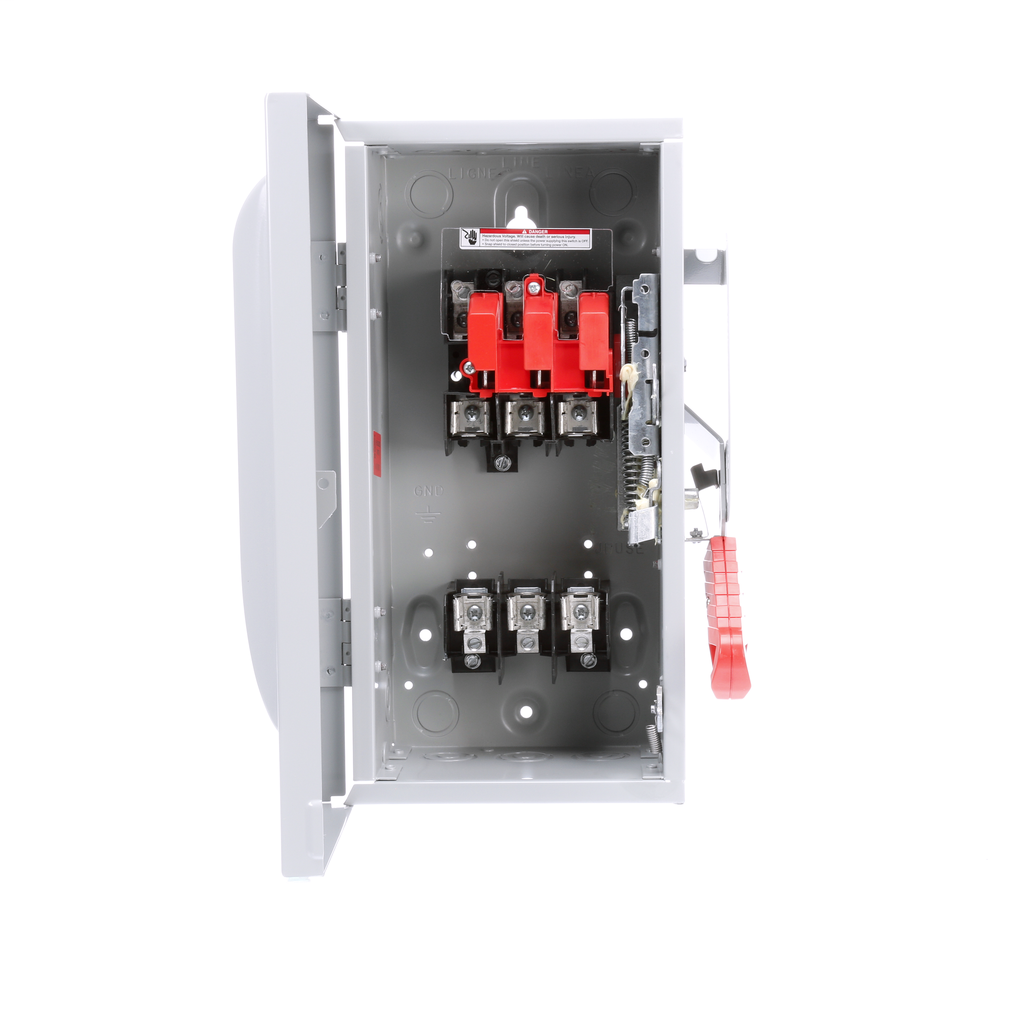

Siemens Industry HF361 240/480/600 VAC/250 VDC 30 Amp 3-Pole 3-Wire NEMA 1 Heavy Duty Fusible Safety Switch
Product image thumbnail 0
Product image thumbnail 1
$211.79/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HF361
North Coast Part # 161731

Features

  • 30-Amp, 3-pole, 3-wire, 600-Volt fusible safety switch
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Visible blade, double-break switching action

Specifications

  • Voltage between phase and phase rated value: 600 V
  • Ampacity: 30 A
  • Switching capacity active power: 3 W
  • Number of poles: 3
  • Supply voltage frequency rated value 50/60 Hz: Yes
  • Mechanical service life (switching cycles) typical: 10000
  • Ambient temperature during operation minimum: -20 degC
  • Ambient temperature during operation maximum: 120 degC
  • Product brandname: SIEMENS
  • Product type designation: ENCLOSED/SAFETY SWITCH
  • Certificate of suitability: UL
  • Manner of function of the actuating element: SINGLE THROW
  • Material: STEEL

Overview

UPC 78364315100
GTiN 00783643151000
Operating Temperature -20 To 120 F
Voltage 600 Volt
Type ENCLOSED/SAFETYSWITCH
Material Steel
Frequency 60 Hz
Wattage 3 Watt
Family Brand Name Siemens
Insulated? No
Amperage 30 Amp
Number of Poles 3 Pole
Enclosure TYPE 1
Action SINGLETHROW
Operating Cycles 10k
Ambient Temperature -20 C
