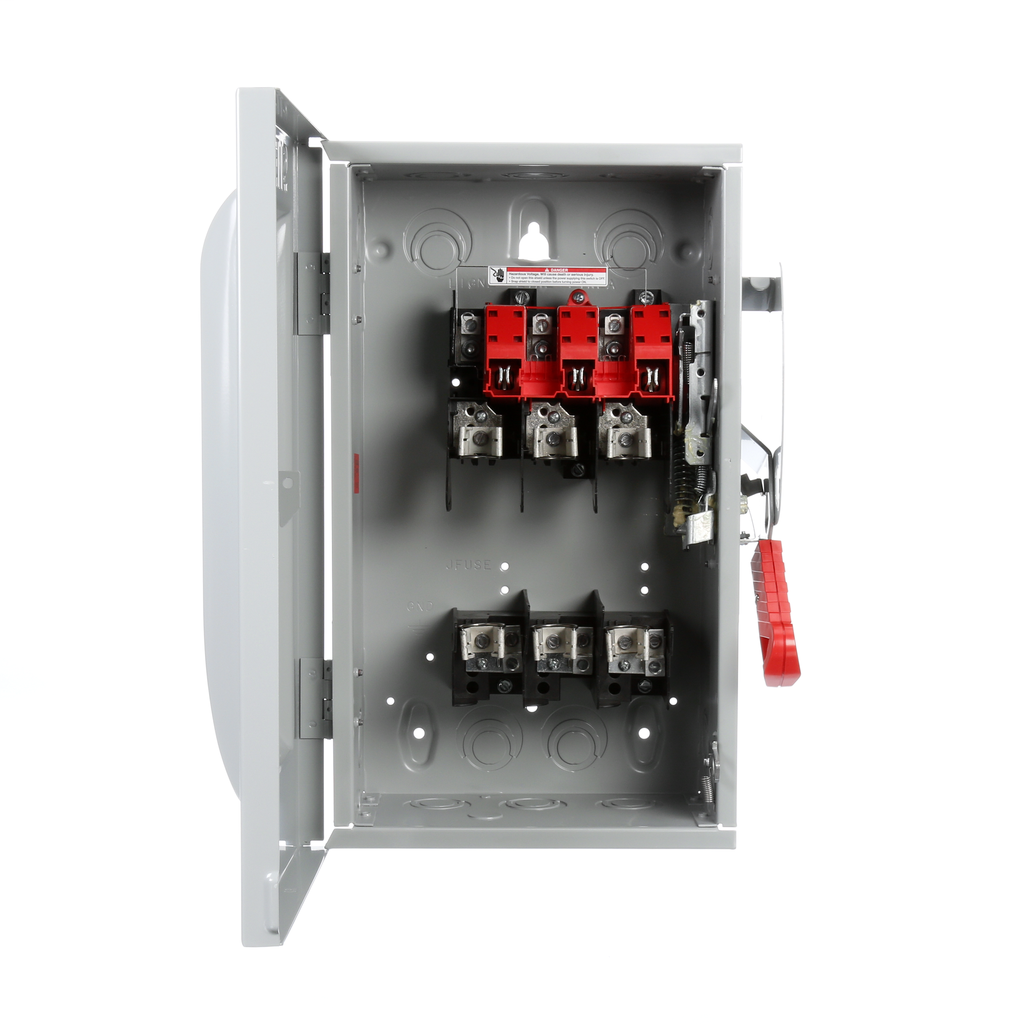

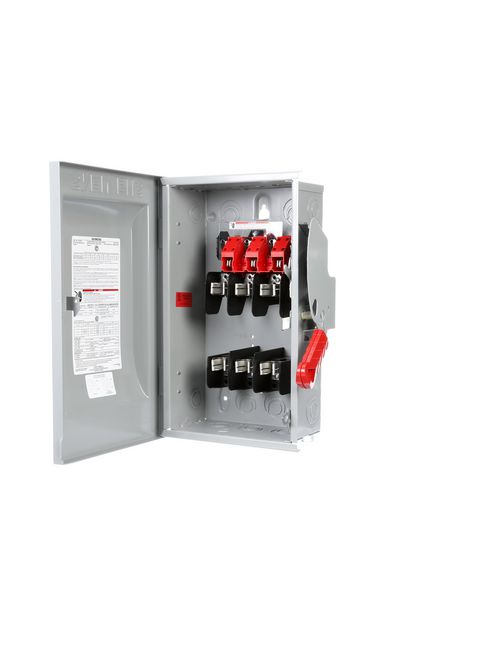

Siemens Industry HF362 480/600 VAC 250/600 VDC 60 Amp 3-Pole 3-Wire NEMA 1 Heavy Duty Fusible Safety Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$270.68/ea
In Stock | 45 available at 16 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HF362
North Coast Part # 161745

Specifications

  • Voltage between phase and phase rated value: 600 V
  • Ampacity: 60 A
  • Switching capacity active power: 3 W
  • Number of poles: 3
  • Supply voltage frequency rated value 50/60 Hz: Yes
  • Mechanical service life (switching cycles) typical: 10000
  • Ambient temperature during operation minimum: -20 degC
  • Ambient temperature during operation maximum: 120 degC
  • Product brandname: SIEMENS
  • Product type designation: ENCLOSED/SAFETY SWITCH
  • Certificate of suitability: UL
  • Manner of function of the actuating element: SINGLE THROW
  • Material: STEEL
> View Substitutes (5)

Overview

UPC 78364315101
Item Long Description Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. Type ENCLOSED, SAFETY SWITCH Std UL V. Rating 600V A. Rating 60A Wattage 3W No. Of Poles 3P F. Rating 60Hz Action SINGLE THROW Material STEEL Enclosure TYPE 1. 2-3 point mounting holes. O. Cycles 10000 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions INDOOR
GTiN 00783643151017
Operating Temperature -20 To 120 F
Voltage 600 Volt
Type ENCLOSED/SAFETYSWITCH
Material Steel
Frequency 60 Hz
Wattage 3 Watt
Family Brand Name Siemens
Insulated? No
Amperage 60 Amp
Number of Poles 3 Pole
Enclosure TYPE 1
Action SINGLETHROW
Operating Cycles 10k
Ambient Temperature -20 C
