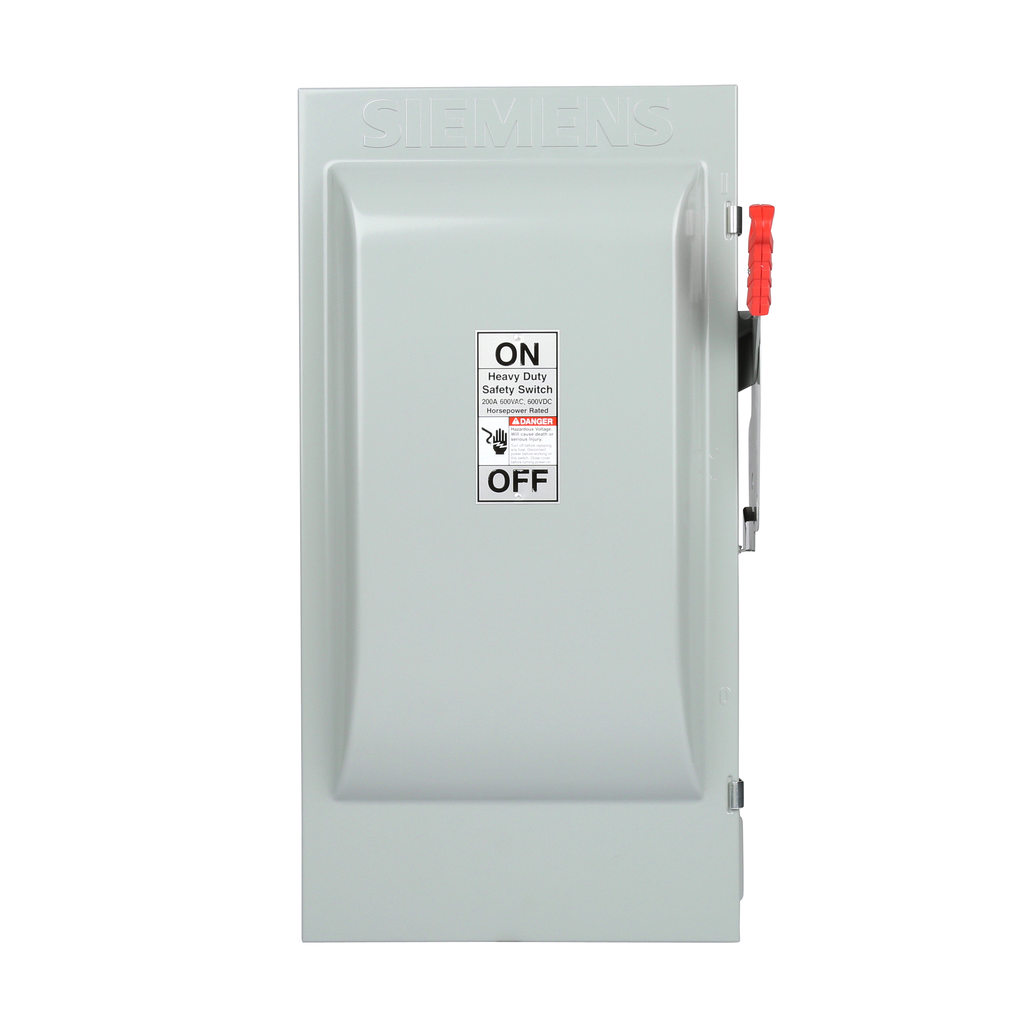

Siemens Industry HF364J 480/600 VAC 250/600 VDC 200 Amp 3-Pole 3-Wire NEMA 12 Heavy Duty Fusible Safety Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,362.76/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HF364J
North Coast Part # 490133

Specifications

  • Certificate of suitability: UL98
  • Ampacity: 200 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
  • Number of poles: 3
  • Mechanical service life (switching cycles) typical: 8000
  • Design of the operating mechanism: SINGLE THROW
  • Design of the housing: NEMA 12
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: HEAVY DUTY SWITCH
  • Product sub brand name: VBII

Overview

UPC 78364315184
Item Long Description Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole 3-Fuse Fused in a type 12 industrial enclosure. Rated 600VAC (200A).
GTiN 00783643151840
Operating Temperature -20 To 120 F
Voltage 600 Volt
Type HEAVYDUTYSWITCH
Material Steel
Mounting Type SURFACE
Frequency 60 Hz
Wattage 3 Watt
Family Brand Name Siemens
Insulated? Yes
Amperage 200 Amp
Number of Poles 3 Pole
Enclosure NEMA12
Action SINGLE THROW
Operating Cycles 8000
Ambient Temperature -29 C
Applications DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
Sub Brand VBII
