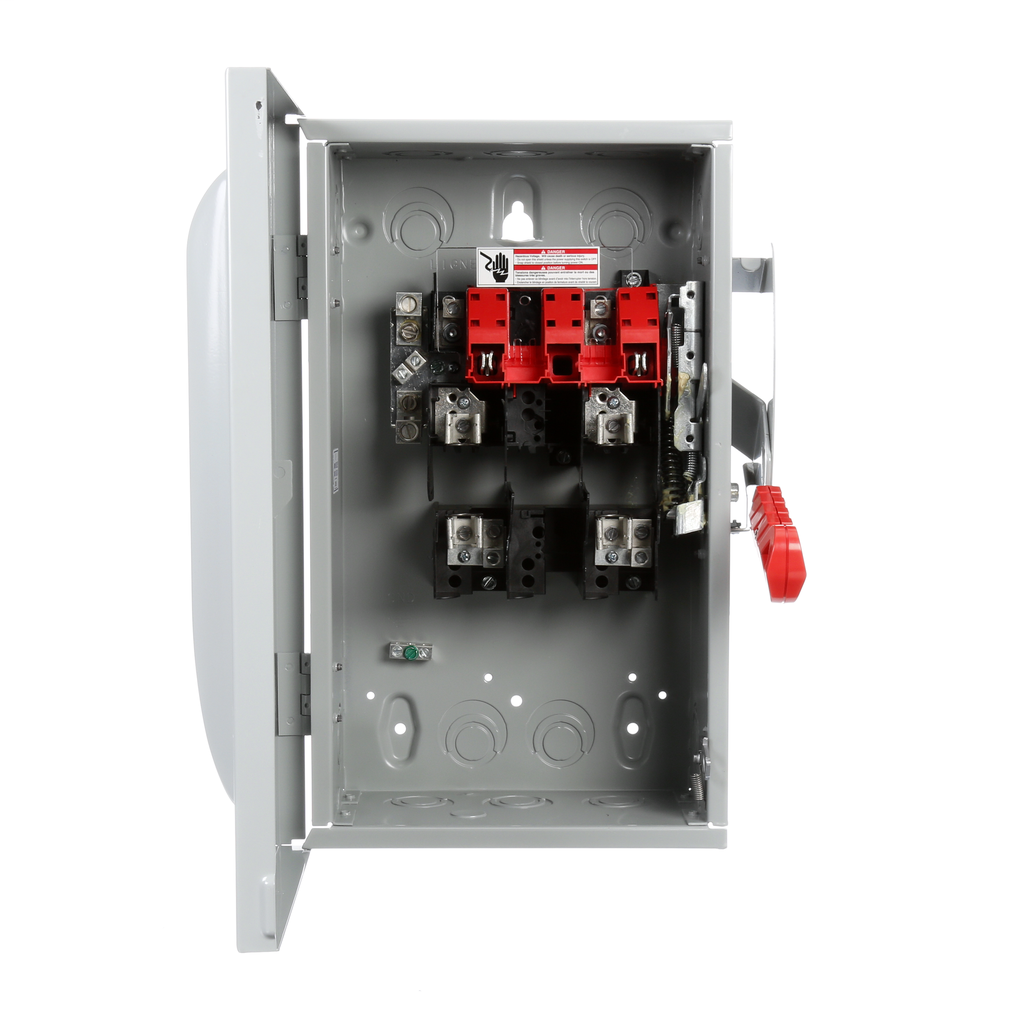

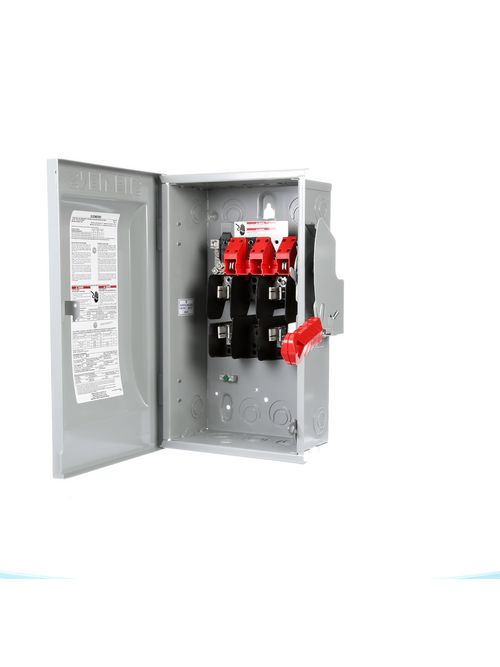

Siemens Ca HFC222N CSA 60A 2P 3W 24
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$209.18/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HFC222N
North Coast Part # 1158664

Specifications

  • Certificate of suitability: UL98 / CSA
  • Ampacity: 60 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
  • Number of poles: 2
  • Mechanical service life (switching cycles) typical: 10000
  • Design of the operating mechanism: SINGLE THROW
  • Design of the housing: NEMA 1
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: HEAVY DUTY SWITCH
  • Product sub brand name: VBII

Overview

UPC 78364350961
Item Long Description Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. Type ENCLOSED, SAFETY SWITCH Std CSA V. Rating 240V A. Rating 60A Wattage 3W No. Of Poles 2PF. Rating 60Hz Action SINGLE THROW Material STEEL Enclosure TYPE 1. 2-3 point mounting holes. O. Cycles 10000 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions INDOOR
GTiN 00783643509610
Operating Temperature -20 To 120 F
Voltage 240 Volt
Type HEAVYDUTYSWITCH
Material Steel
Applications DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Mounting Type SURFACE
Frequency 60 Hz
Wattage 3 Watt
Family Brand Name Siemens
Insulated? No
Amperage 60 Amp
Number of Poles 2 Pole
Enclosure NEMA1
Action SINGLE THROW
Operating Cycles 10k
Ambient Temperature -29 C
Sub Brand VBII
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
