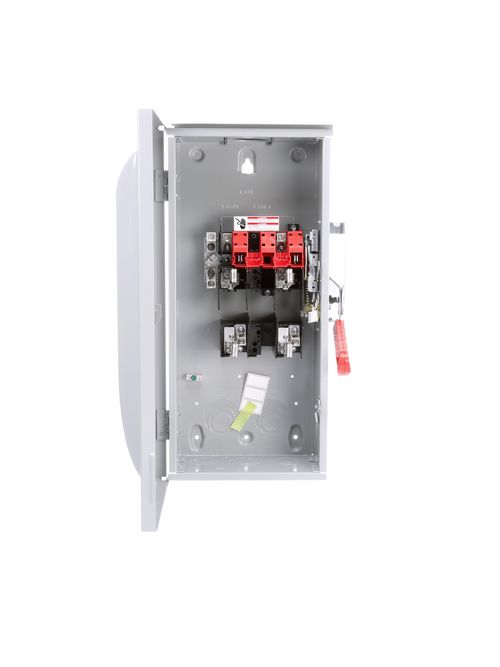

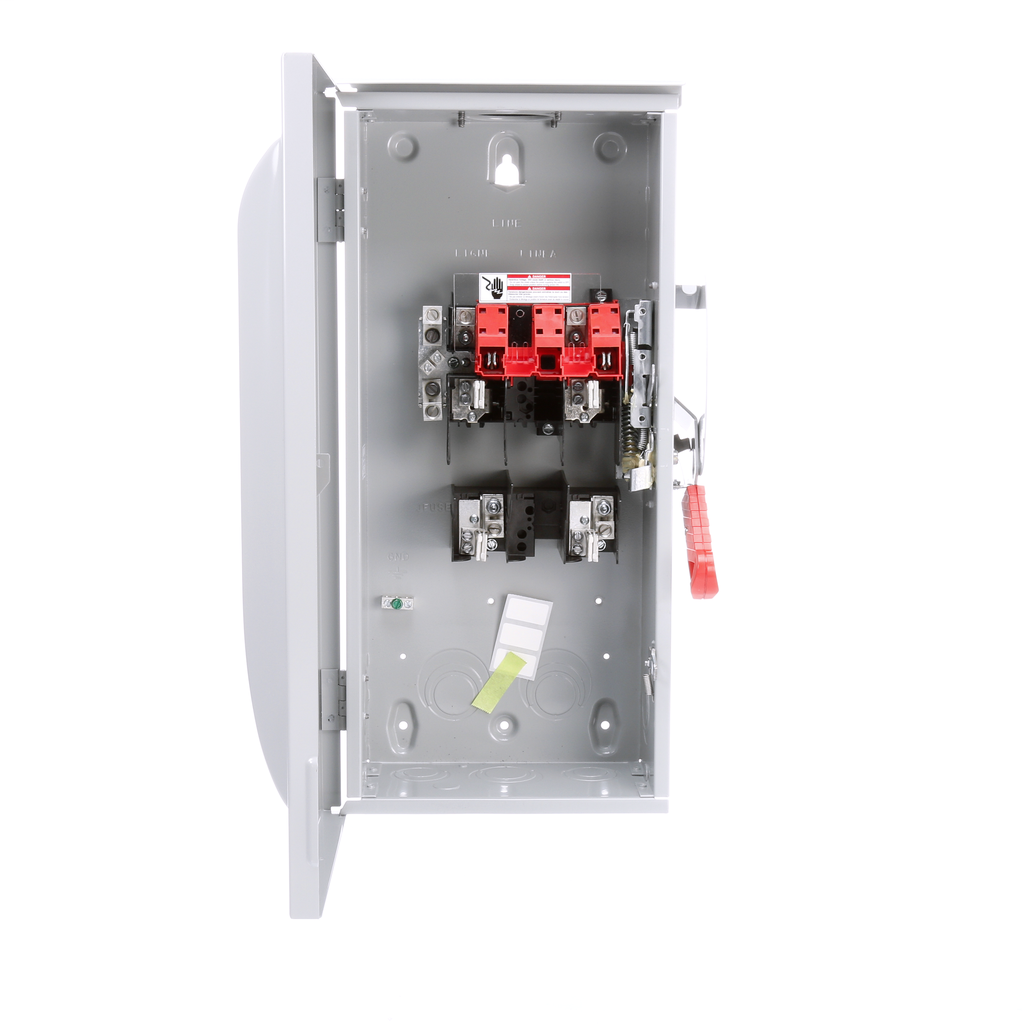

Siemens Ca HFC223NR HD, 3R, 100A, 2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$448.12/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HFC223NR
North Coast Part # 1158667

Specifications

  • Certificate of suitability: UL98 / CSA
  • Ampacity: 100 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
  • Number of poles: 2
  • Mechanical service life (switching cycles) typical: 10000
  • Design of the operating mechanism: SINGLE THROW
  • Design of the housing: NEMA 3R
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: HEAVY DUTY SWITCH
  • Product sub brand name: VBII

Overview

UPC 78364322152
Item Long Description Safety switch are heavy duty models intented for use in industrial rugged area where reliable service and maintenance free are required with fault current higher than 10 KA. Available in versions 2 poles 2 fuses solid neutral 240vac, 3 poles 3 fuses 240600vac and 3 poles no fuses 600vac. Enclosures come in type 1 indoor use, type 12 industrial use, type 4X stainless steel corrosive area available with or without outlet receptacle. Available with window door to view fuses and contacts.
GTiN 00783643221529
Operating Temperature -20 To 120 F
Voltage 240 Volt
Type Heavy Duty, Fusible, Enclosed, Single Throw, Toggle
Material Steel
Applications For Outdoor use
Mounting Type 2 or 3 Point Hole
Frequency 60 Hz
Wattage 3 Watt
Fuse Type A2/A3
Temperature Rating -20 to 120 F Ambient
Family Brand Name Siemens
Insulated? No
Housing Material 304 Stainless Steel
Amperage 100 Amp
Number of Poles 2 Pole
Number of Wires 3
Load Rating 3 W
Interrupt Rating 10 kA
Enclosure NEMA3R
Action SINGLE THROW
Operating Cycles 10000
Ambient Temperature -29 C
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
Sub Brand VBII
