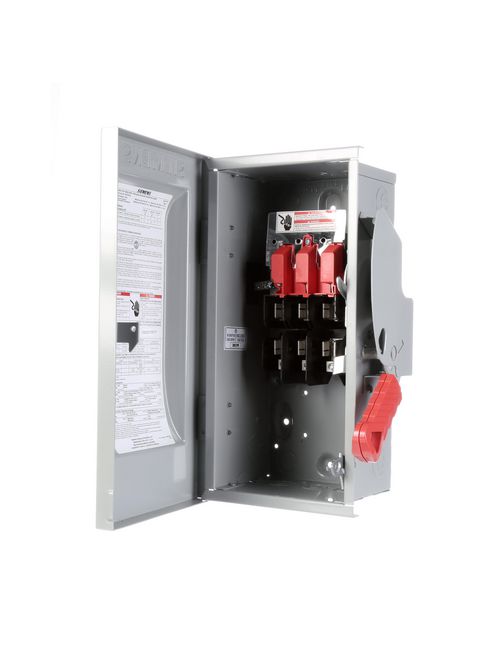

Siemens Ca HFC321N CSA 30A 3P 4W 24
Product image thumbnail 0
Product image thumbnail 1
$137.81/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HFC321N
North Coast Part # 1158675

Specifications

  • Certificate of suitability: UL98 / CSA
  • Ampacity: 30 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
  • Number of poles: 3
  • Mechanical service life (switching cycles) typical: 10000
  • Design of the operating mechanism: SINGLE THROW
  • Design of the housing: NEMA 1
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: HEAVY DUTY SWITCH
  • Product sub brand name: VBII

Categories

Overview

UPC 78364351078
Item Long Description Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. Type ENCLOSED, SAFETY SWITCH Std CSA V. Rating 240V A. Rating 30A Wattage 4W No. Of Poles 3PF. Rating 60Hz Action SINGLE THROW Material STEEL Enclosure TYPE 1. 2-3 point mounting holes. O. Cycles 10000 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions INDOOR
GTiN 00783643510784
Operating Temperature -20 To 120 F
Voltage 240 Volt
Type Heavy Duty, Enclosed, Fused, Single Throw
Material Steel
Applications DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Mounting Type 2 or 3 Point Hole
Frequency 60 Hz
Wattage 4 Watt
Temperature Rating -20 to 120 F Ambient
Family Brand Name Siemens
Insulated? No
Housing Material Steel
Amperage 30 Amp
Number of Poles 3 Pole
Number of Wires 4
Load Rating 4 W
Enclosure NEMA1
Action SINGLE THROW
Operating Cycles 10000
Ambient Temperature -29 C
Sub Brand VBII
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
