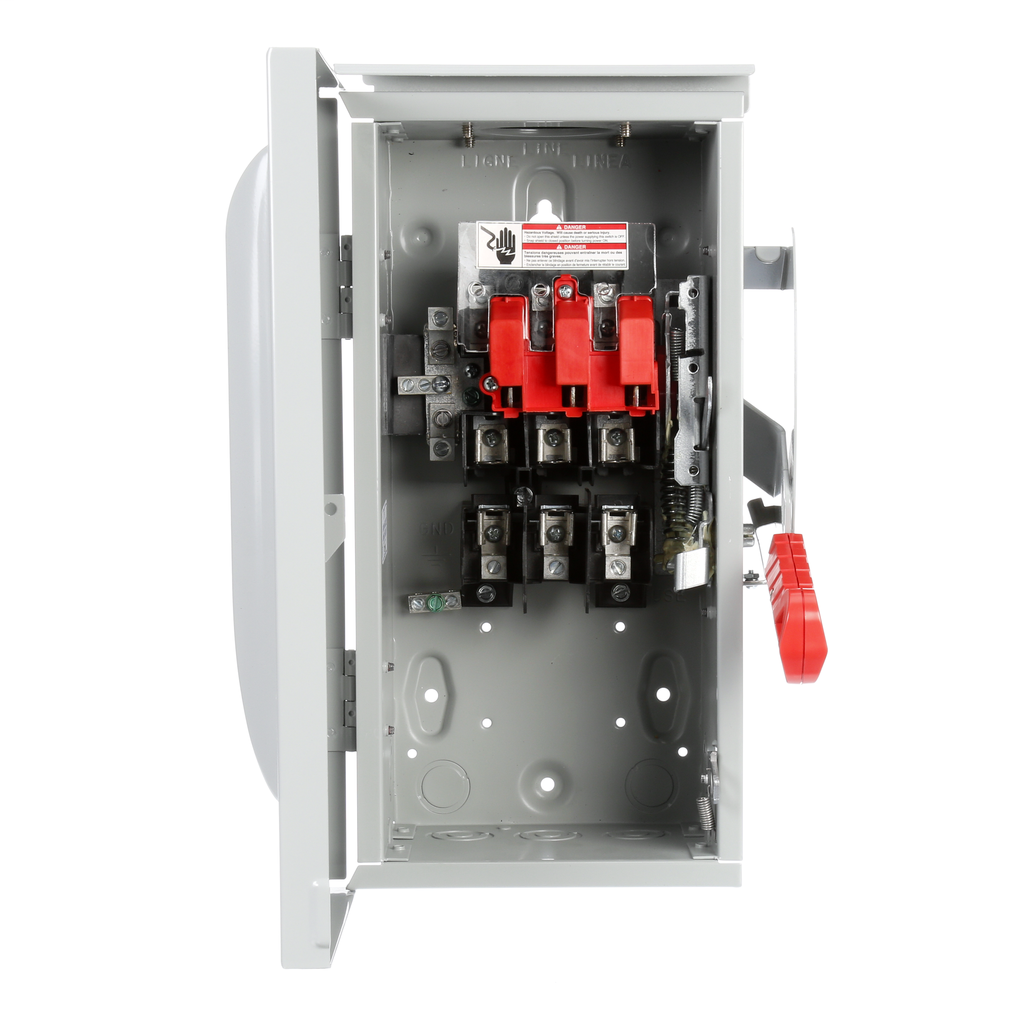

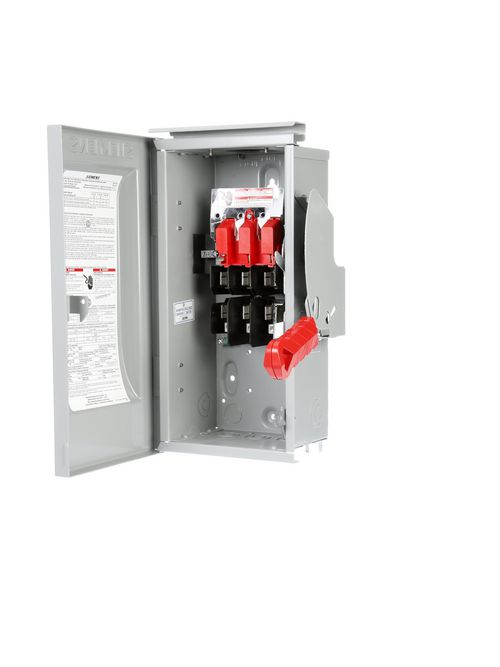

Siemens Ca HFC321NR CSA 30A 3P 4W 2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$230.34/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HFC321NR
North Coast Part # 1158677

Specifications

  • Certificate of suitability: UL98 / CSA
  • Ampacity: 30 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
  • Number of poles: 3
  • Mechanical service life (switching cycles) typical: 10000
  • Design of the operating mechanism: SINGLE THROW
  • Design of the housing: NEMA 3R
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: HEAVY DUTY SWITCH
  • Product sub brand name: VBII

Categories

Overview

UPC 78364322156
Item Long Description Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. Type ENCLOSED, SAFETY SWITCH Std CSA V. Rating 240V A. Rating 30A Wattage 4W No. Of Poles 3PF. Rating 60Hz Action SINGLE THROW Material 304SS Enclosure TYPE 3R. 2-3 point mounting holes. O. Cycles 10000 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions OUTDOOR
GTiN 00783643221567
Operating Temperature -20 To 120 F
Voltage 240 Volt
Type Enclosed
Material Steel
Mounting Type 2 or 3 Point Hole
Frequency 60 Hz
Wattage 4 Watt
Family Brand Name Siemens
Insulated? No
Amperage 30 Amp
Number of Poles 3 Pole
Enclosure NEMA3R
Action SINGLE THROW
Operating Cycles 10000
Ambient Temperature -29 C
Applications DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
Sub Brand VBII
Fuse Type A2/A3
Temperature Rating -20 to 120 F Ambient
Housing Material 304 Stainless Steel
Contact Configuration Single Throw
Load Rating 4 W
Interrupt Rating 10 kA
