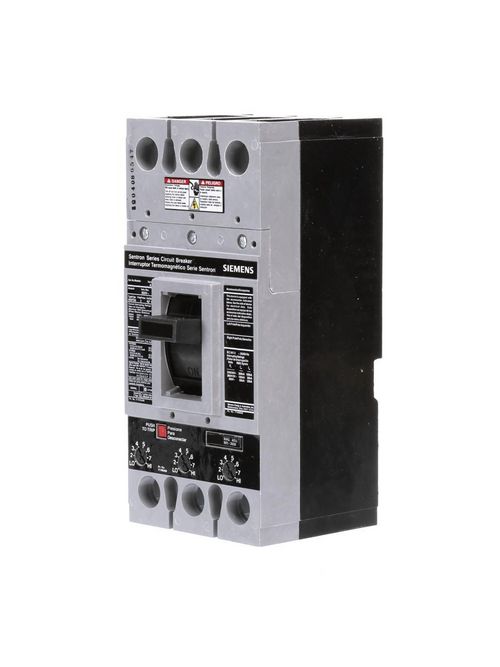

Siemens Ca HHFD63B250 FD MCCB,100kA
$4,776.19/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HHFD63B250
North Coast Part # 1347856
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH EXTRA HIGH BREAKING CAPACITY. 250A 3-POLE (25KAIC AT 600V) (100KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG -350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.

Categories

Overview

UPC 78364330432
Item Long Description SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH EXTRA HIGH BREAKING CAPACITY. 250A 3-POLE (25KAIC AT 600V) (100KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG -350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
GTiN 00783643304321
Length 7.000
Width 6.000
Operating Temperature 40 C
Voltage 600 Volt
Type HHFD6
Applications Standard 40C Breaker
Height 10 in
Standard HACR
Frequency 50/60 Hz
Family Brand Name Siemens
Frame FD
Actuator Varying
Amperage 250 Amp
Trip Type Thermal-Magnetic
Number of Poles 3 Pole
Interrupt Rating 25 kA
Enclosure Varying
Trip Range 1100-2500
Sub Brand Sentron
TC Connection N/A
Load Rating N/A
