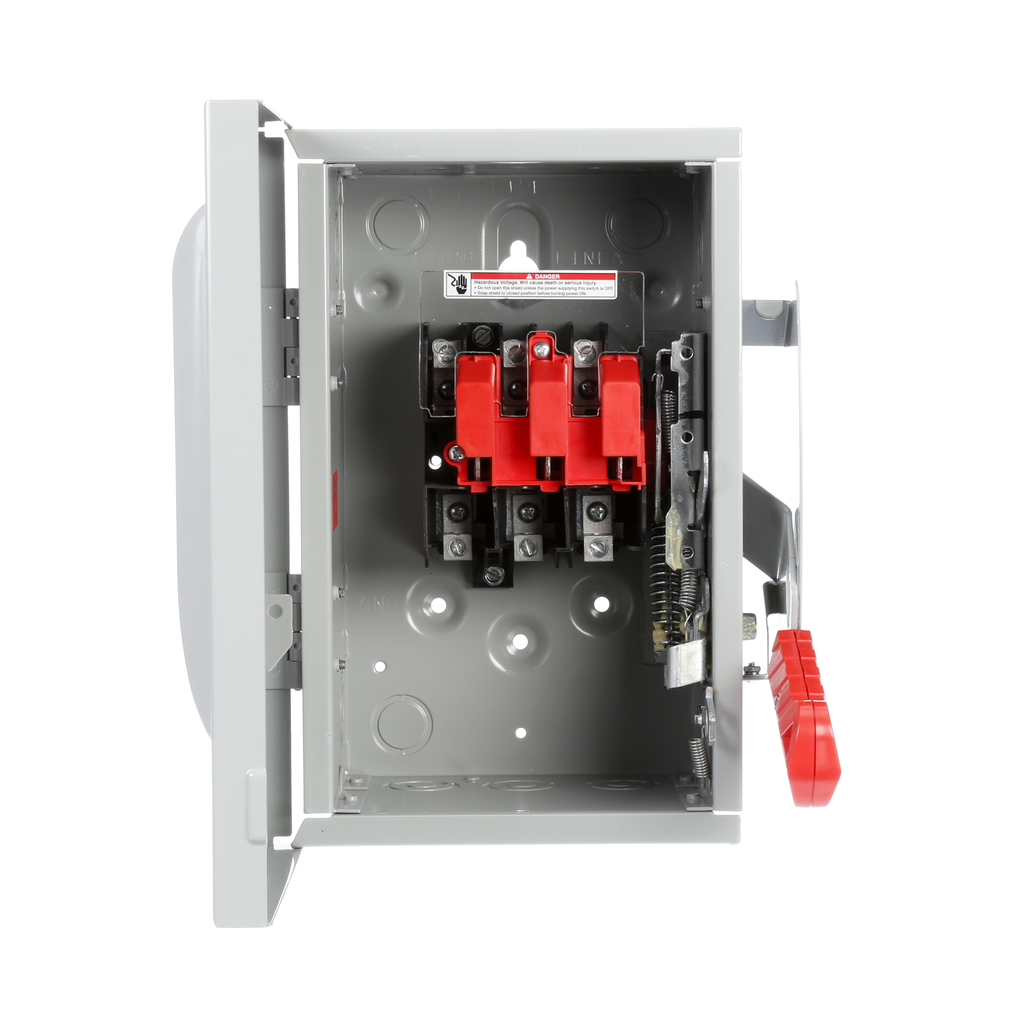

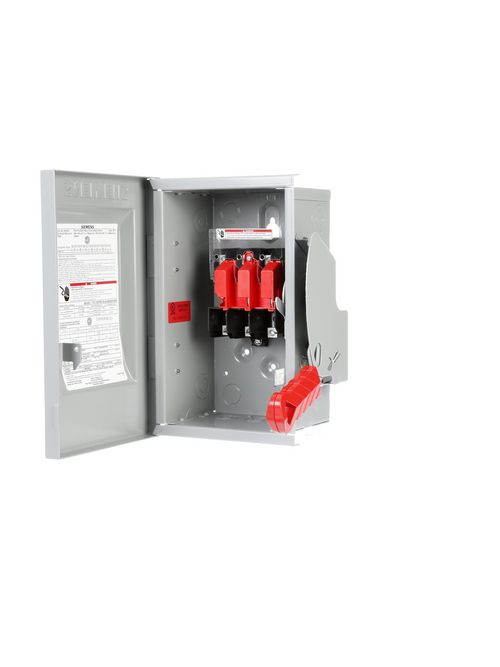

Siemens Industry HNF361 240/480/600 VAC 250 VDC 30 Amp 3-Pole 3-Wire NEMA 1 Heavy Duty Non-Fusible Safety Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$122.96/ea
In Stock | 67 available at 22 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HNF361
North Coast Part # 12616

Specifications

  • Voltage between phase and Ground (GND) rated value: 600 V
  • Ampacity: 30 A
  • Switching capacity active power: 3 W
  • Number of poles: 3
  • Supply voltage frequency rated value 50/60 Hz: Yes
  • Mechanical service life (switching cycles) typical: 10000
  • Product brandname: SIEMENS
  • Product type designation: ENCLOSED/SAFETY SWITCH
  • Certificate of suitability: UL
  • Manner of function of the actuating element: SINGLE THROW

Overview

UPC 78364315115
Item Long Description Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. 30A 3P 600V 3W NON FUSED HD TYPE 1
GTiN 00783643151154
Operating Temperature -20 To 120 F
Voltage 600 Volt
Type ENCLOSED/SAFETYSWITCH
Material Steel
Frequency 60 Hz
Wattage 3 Watt
Family Brand Name Siemens
Insulated? No
Amperage 30 Amp
Number of Poles 3 Pole
Enclosure TYPE 1
Action SINGLETHROW
Operating Cycles 10k
