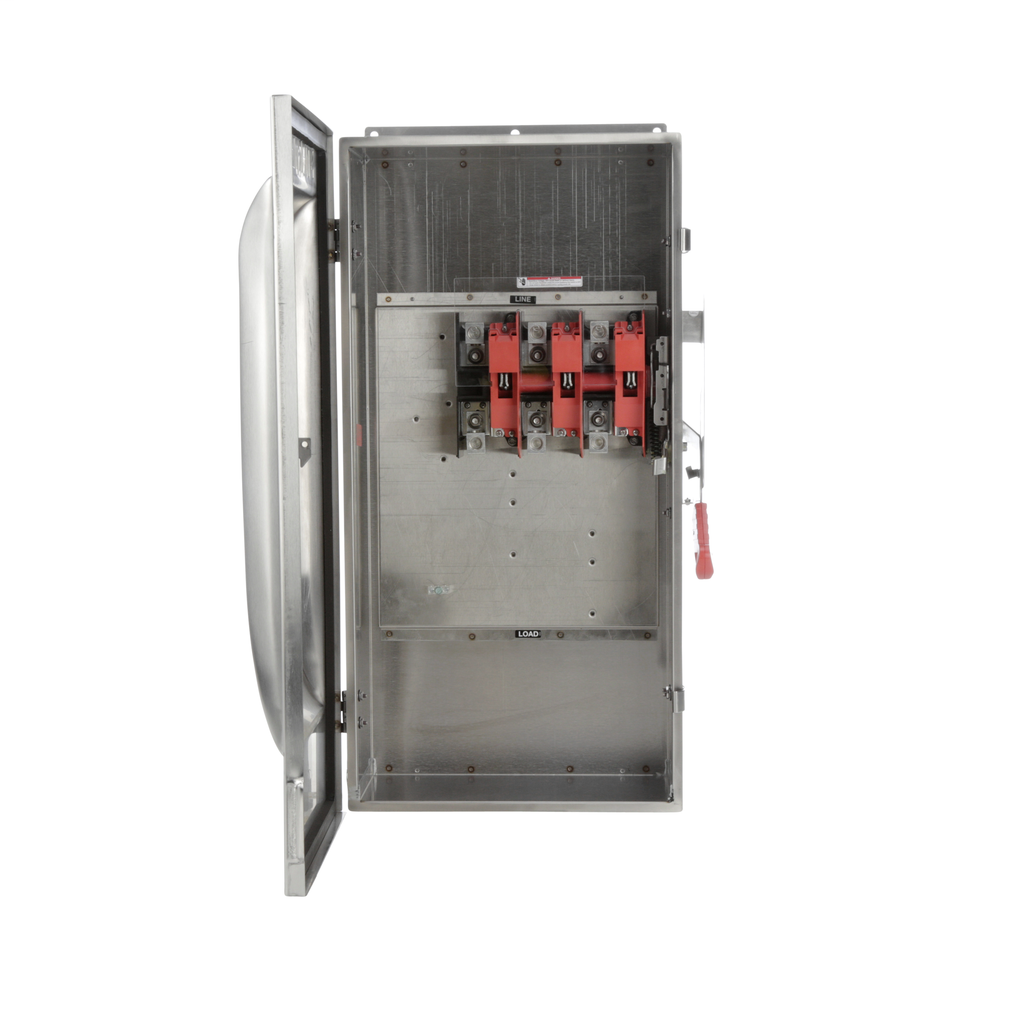

Siemens Industry HNF364S 240/480/600 VAC 250/600 VDC 200 Amp 3-Pole 3-Wire NEMA 4/4X Heavy Duty Non-Fusible Safety Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$5,080.98/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HNF364S
North Coast Part # 492619

Specifications

  • Certificate of suitability: UL98
  • Ampacity: 200 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
  • Number of poles: 3
  • Mechanical service life (switching cycles) typical: 8000
  • Design of the operating mechanism: SINGLE THROW
  • Design of the housing: NEMA 4X
  • Material: 304 STAINLESS STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: HEAVY DUTY SWITCH
  • Product sub brand name: VBII

Categories

Overview

UPC 78364315213
Item Long Description Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole Non-Fused in a type 4/4X 304 grade Stainless Steel enclosure. Rated 600VAC (200A).
GTiN 00783643152137
Operating Temperature -20 To 120 F
Voltage 600 Volt
Type HEAVYDUTYSWITCH
Material 304 Stainless Steel
Mounting Type SURFACE
Frequency 60 Hz
Wattage 3 Watt
Family Brand Name Siemens
Insulated? Yes
Amperage 200 Amp
Number of Poles 3 Pole
Enclosure NEMA4X
Action SINGLE THROW
Operating Cycles 8000
Ambient Temperature -29 C
Applications DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
Sub Brand VBII
