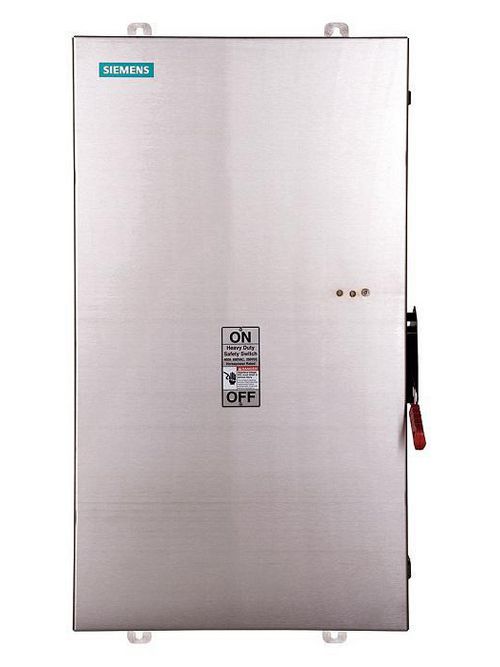

Siemens Industry HNF365S 240/480/600 VAC 250 VDC 400 Amp 3-Pole 3-Wire NEMA 4/4X Heavy Duty Non-Fusible Safety Switch
$23,709.71/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HNF365S
North Coast Part # 487623
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. Type ENCLOSED, SAFETY SWITCH Std UL V. Rating 600V A. Rating 400A Wattage 3W

Catalog No. Of Poles 3PF. Rating 60Hz Action SINGLE THROW Material SS Enclosure TYPE 4X. 2-3 point mounting holes. Insulation YES O. Cycles 6050 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions INDUSTRIAL CORROSIVE RESISTANCE

Categories

Overview

UPC 78364315214
Item Long Description Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. Type ENCLOSED, SAFETY SWITCH Std UL V. Rating 600V A. Rating 400A Wattage 3W No. Of Poles 3PF. Rating 60Hz Action SINGLE THROW Material SS Enclosure TYPE 4X. 2-3 point mounting holes. Insulation YES O. Cycles 6050 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions INDUSTRIAL CORROSIVE RESISTANCE
GTiN 00783643152144
Operating Temperature -20 To 120 F
Voltage 600 Volt
Type Enclosed/Safety Switch
Material Stainless Steel
Mounting Type 2 or 3 Point Mounting Holes
Standard UL
Frequency 60 Hz
Wattage 3 Watt
Family Brand Name Siemens
Insulated? Yes
NEMA 4X
Amperage 400 Amp
Number of Poles 3 Pole
Enclosure NEMA4X
Action SINGLE THROW
Operating Cycles 6050
Applications DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
Sub Brand VBII
