Siemens Ca HNFC363 CSA 100A 3P 3W 6

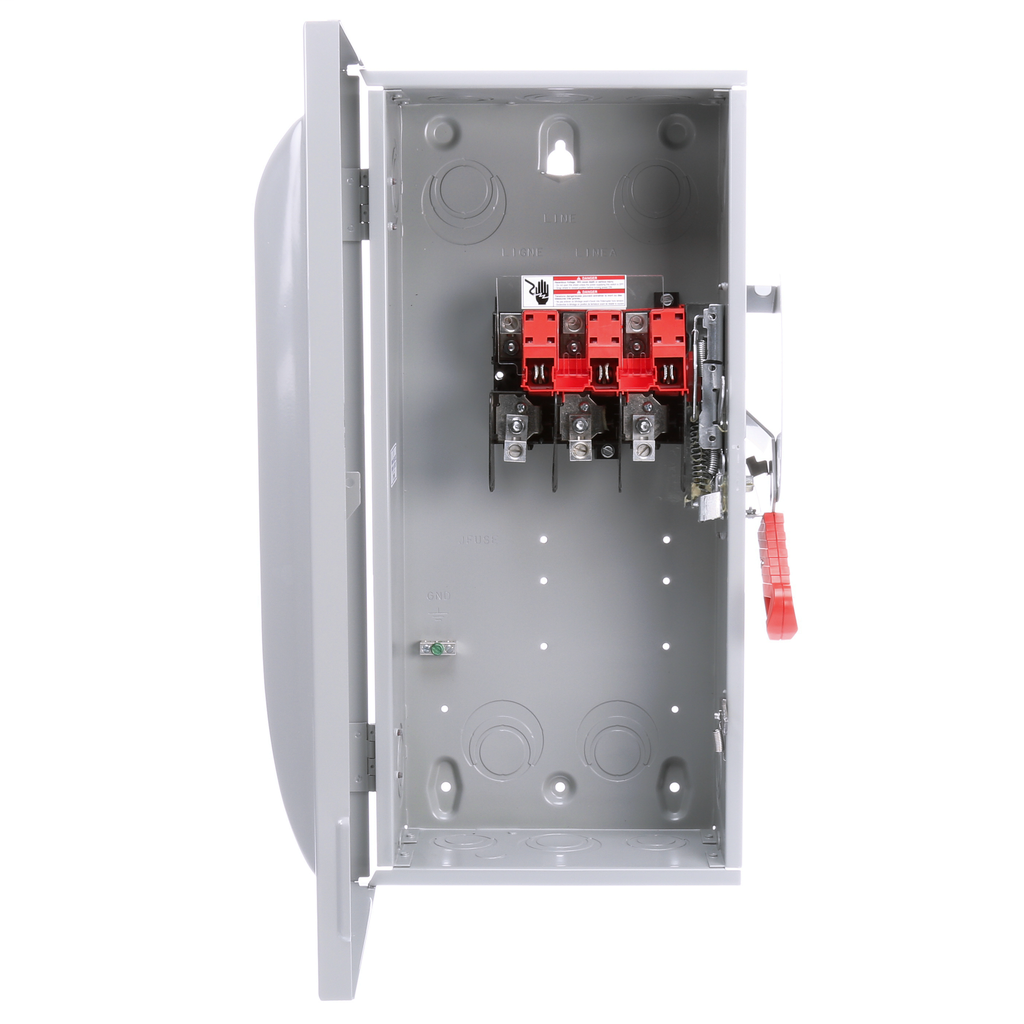

Product image thumbnail 0
Product image thumbnail 1
$321.03/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HNFC363
North Coast Part # 1159150

Specifications

  • Certificate of suitability: UL98 / CSA
  • Ampacity: 100 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 85 degC
  • Mounting type: SURFACE
  • Suitability for operation: DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS
  • Number of poles: 3
  • Mechanical service life (switching cycles) typical: 10000
  • Design of the operating mechanism: SINGLE THROW
  • Design of the housing: NEMA 1
  • Material: STEEL
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Product type designation: HEAVY DUTY SWITCH
  • Product sub brand name: VBII

Overview

UPC 78364322128
GTiN 00783643221284
Operating Temperature -20 To 120 F
Voltage 600 Volt
Type Heavy Duty, Non-Fused, Toggle, Single Throw
Material Steel
Applications For Indoor use
Mounting Type 2 or 3 Point Mounting Holes
Frequency 60 Hz
Connection Type Screw
Wattage 3 Watt
Temperature Rating -20 to 120 F Ambient
Family Brand Name Siemens
Insulated? No
Housing Material Steel
Amperage 100 Amp
Number of Poles 3 Pole
Number of Wires 3
Load Rating 3 W
Enclosure NEMA1
Action SINGLE THROW
Operating Cycles 10000
Ambient Temperature -29 C
Sub Brand VBII
TC Connection MECHANICALLUGS
Actuator SINGLETHROW
