S-A JA3042B1400SC MUR MC 30S/42C 40
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$8,112.38/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # JA3042B1400SC
North Coast Part # 1354417

Specifications

  • Certificate of suitability: EUSERC COMPLIANT
  • Ampacity: 400 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Cable entry type: TOP / BOTTOM
  • Mounting type: SURFACE
  • Suitability for operation: SERVICE ENTRANCE EQUIPMENT
  • Phase number: 1
  • Design of the terminal strip: 4-JAW
  • Number of sockets switchable: 1
  • Number of terminals: 3
  • Product brand name: MURRAY
  • Product type designation: METER LOAD CENTER - MAIN DISCONNECT COMBINATION
  • Special product feature: 2 MAIN CIRCUIT BREAKER PROVISIONS

Overview

UPC 04089201482

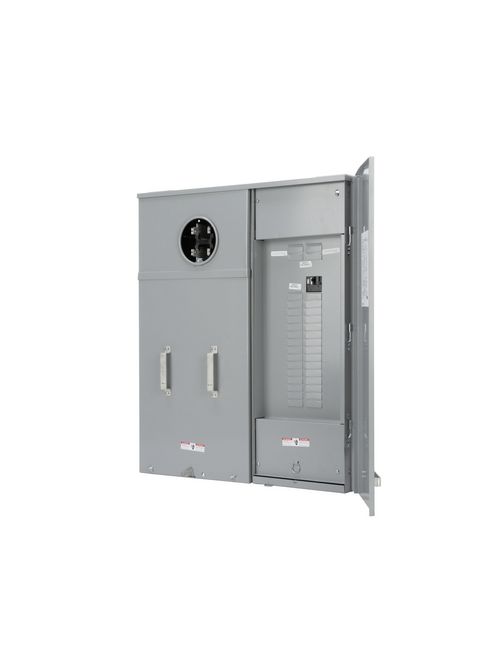

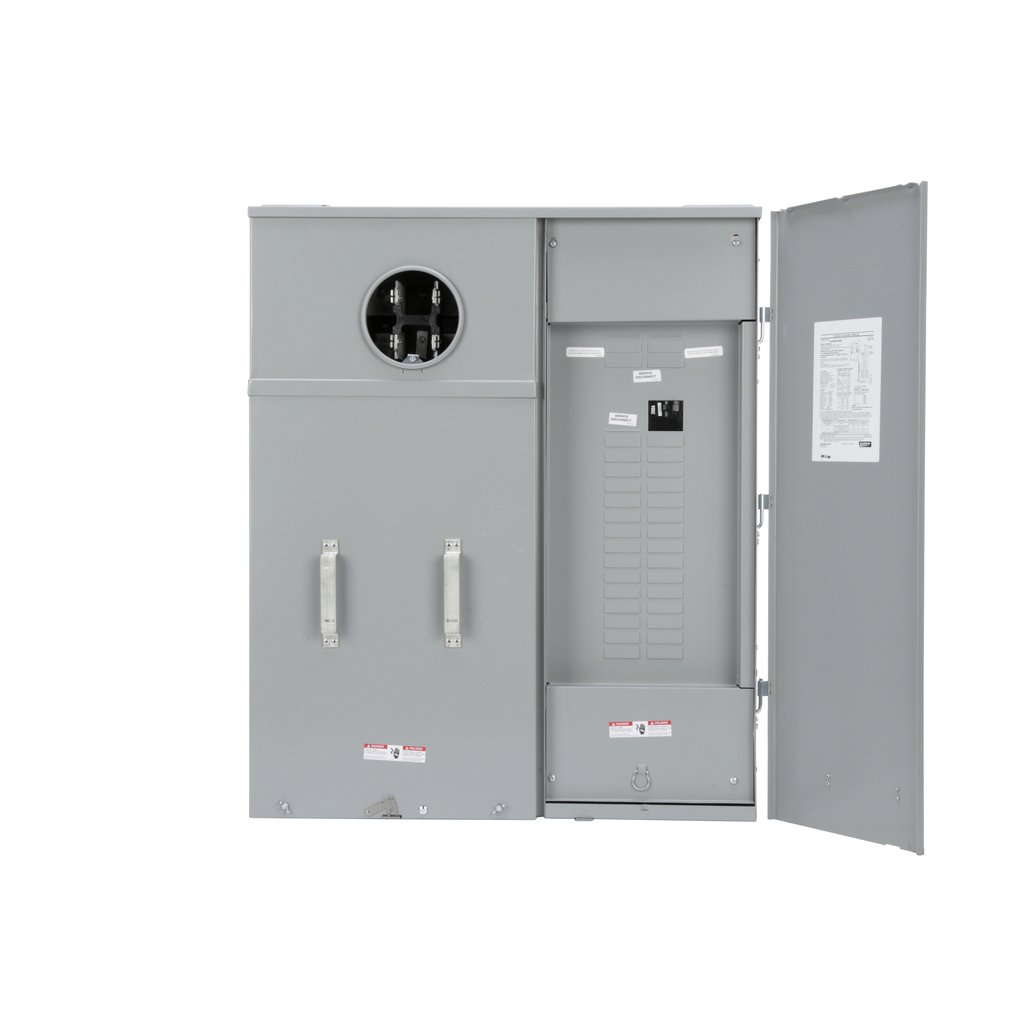

Item Long Description MURRAY METER LOAD CENTER COMBINATION. FACTORY INSTALLED MAIN BREAKER 30 (1 INCH) SPACES INTERIOR ALLOWING MAX 42 CIRCUITS. 4-JAW METER / 1-PHASE SYSTEM RATED 400A. SPECIAL FEATURES OH/UG FEED, RING TYPE COVER, SURFACE MOUNTING
GTiN 00040892014822
Size 1
Voltage 120/240 Volt
Mounting Type SURFACE
Family Brand Name Siemens
Number of Phases 1 Phase
Amperage 400 Amp
Cable Entry TOP/BOTTOM
Enclosure Ring
Sub Brand Meter Combos
Operating Temperature N/A
Type METERLOADCENTER-MAINDISCONNECTCOMBINATION
Applications SERVICEENTRANCEEQUIPMENT
