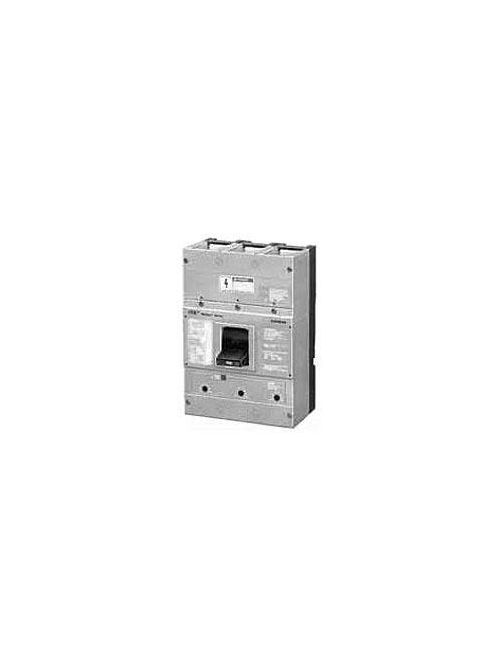

Siemens Industry JD63B300L 3-Pole 600 VAC 300 Amp 25 kA Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker

UPC	78364300915
Item Long Description	SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 300A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL). DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
GTiN	00783643009158
Length	7.000
Width	9.000
Operating Temperature	40 C
Voltage	600 Volt
Type	JD6
Applications	Standard 40C Breaker
Height	15 in
Standard	UL,HACR
Frequency	50/60 Hz
Connection Type	Line/Load Lugs Installed
Family Brand Name	Siemens
Frame	JD
TC Connection	Line/Load lugs installed
Actuator	Varying
Amperage	300 Amp
Trip Type	Thermal-Magnetic
Number of Poles	3 Pole
Interrupt Rating	25 kA
Enclosure	Varying
Trip Range	1250-2500
Sub Brand	Sentron
Load Rating	N/A
