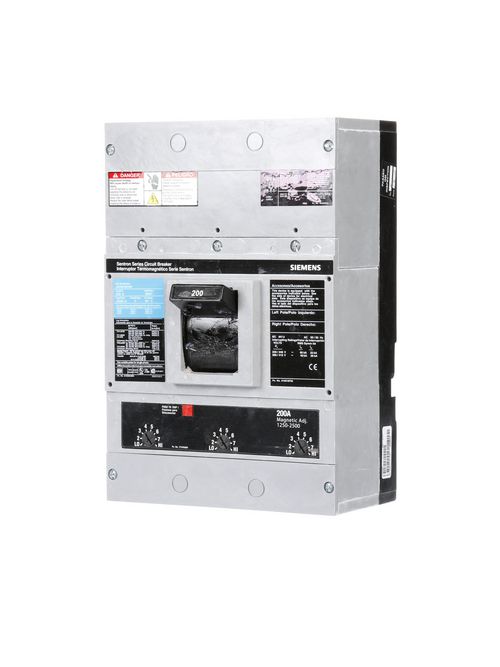

Siemens Industry JXD63B200 3-Pole 600 VAC 200 Amp 25 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,114.13/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # JXD63B200
North Coast Part # 484889

Categories

Overview

UPC 78364321304
Item Long Description SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 200A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
GTiN 00783643213043
Length 6.500
Width 8.800
Operating Temperature 40 C
Voltage 250 Volt
Type JXD6
Applications Standard 40C Breaker
Height 14.5 in
Standard HACR,UL
Frequency 50/60 Hz
Family Brand Name Siemens
Frame JD
Actuator Varying
Amperage 200 Amp
Trip Type Thermal-Magnetic
Number of Poles 3 Pole
Interrupt Rating 25 kA
Enclosure Varying
Trip Range 1250-2500
Sub Brand Sentron
TC Connection N/A
Load Rating N/A
