UPC | 78364321390 |

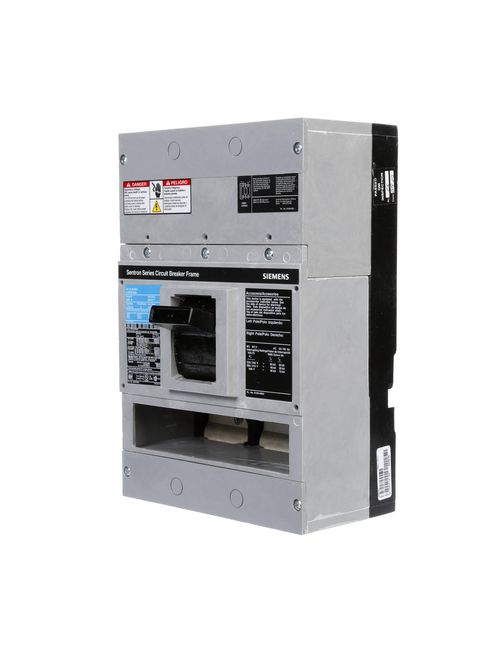

Item Long Description | SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER LD FRAME WITH STANDARD BREAKING CAPACITY. 600A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). INTERCHANGEABLE TRIPUNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL). DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00. |
GTiN | 00783643213906 |
Length | 7.000 |
Width | 9.000 |
Operating Temperature | 40 C |
Voltage | 500 Volt |
Type | LD6 |
Applications | For Standard 40C Breaker |
Height | 13 in |
Standard | HACR,UL |
Frequency | 50/60 Hz |
Family Brand Name | Siemens |
Frame | LD6 |
Actuator | Varying |
Amperage | 600 Amp |
Trip Type | Thermal Magnetic |
Number of Poles | 3 Pole |
Interrupt Rating | 25 kAIC |
Enclosure | Varying |
Trip Range | 3000 - 6000 A |
Sub Brand | Sentron |
TC Connection | N/A |
Load Rating | N/A |
Temperature Rating | 40 C |
Blade Dimensions | 7 in L x 9 in W x 13 in H |
