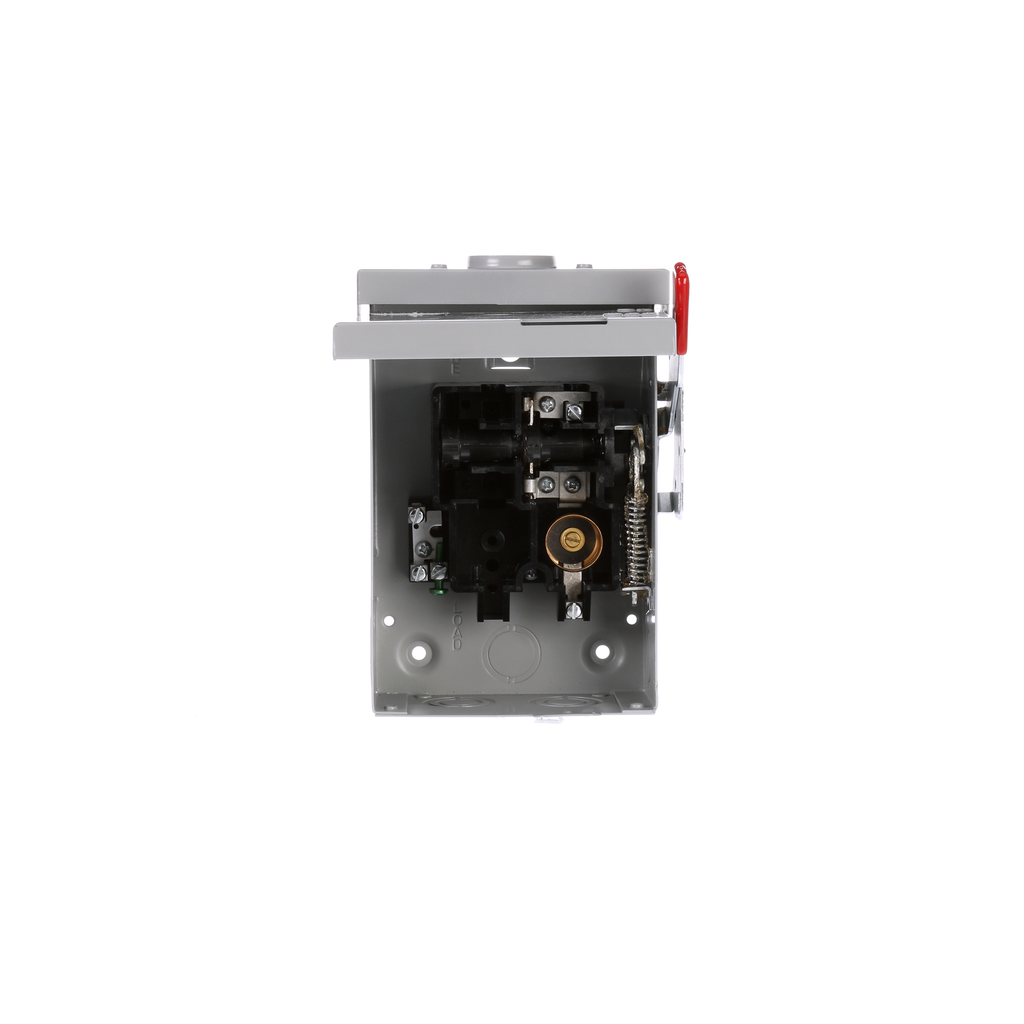

S-A LF111NR 30A 1P 120V PLUG FUSED
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$103.35/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # LF111NR
North Coast Part # 600486

Features

  • 120/240-Volt, single phase, 2 wire, fusible safety switch
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Generous wiring gutters that meet or exceed NEC wire-bending space requirements
  • Visible blade, double-break switch action
  • Highly visible on/off indication
  • Single cover interlock
  • Side-hinged door that opens 180? for easier wiring
  • Unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installer's hands
  • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing

Specifications

  • Ampacity: 30 A
  • Number of poles: 1
  • Mechanical service life (switching cycles) typical: 10000
  • Ambient temperature during operation minimum: -29 degC
  • Ambient temperature during operation maximum: 49 degC
  • Product brandname: Siemens
  • Product type designation: ENCLOSED/SAFETY SWITCH
  • Certificate of suitability: UL
  • Manner of function of the actuating element: SINGLE THROW
  • Material: 304SS

Overview

UPC 78364333513
GTiN 00783643335134
Operating Temperature -20 To 120 F
Voltage 120 Volt
Type ENCLOSED/SAFETYSWITCH
Material 304 Stainless Steel
Frequency 60 Hz
Family Brand Name Siemens
Insulated? No
Amperage 30 Amp
Number of Poles 1 Pole
Enclosure TYPE 3R
Action SINGLETHROW
Operating Cycles 10k
Ambient Temperature -29 C
