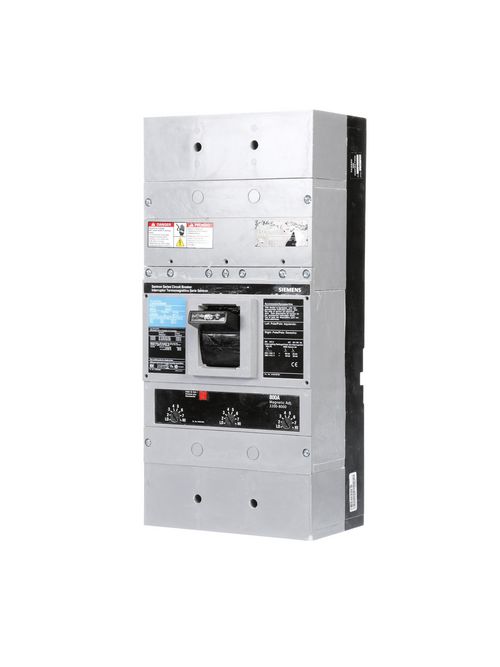

Siemens Industry LMXD63B800 3-Pole 600 Volt 800 Amp Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$16,459.56/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # LMXD63B800
North Coast Part # 550134
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER LMD FRAME WITH STANDARD BREAKINGCAPACITY. 800A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 16.0 x 4.50.

Overview

GTiN 00783643304123
Length 6.7 Inch
Width 10.1 in
Operating Temperature 40C
Voltage 600 Volt
Type LMXD6
Applications Standard 40C Breaker
Height 18.7 Inch
Standard HACR,UL
Frequency 50/60 Hz
Family Brand Name Siemens
Frame LMD
Actuator Varying
Amperage 800 Amp
Trip Type Thermal-Magnetic
Number of Poles 3 Pole
Interrupt Rating 25KAIC
Enclosure Varying
Trip Range 3200-8000
Sub Brand Sentron
Product UPC 78364330412
TC Connection N/A
Load Rating N/A
