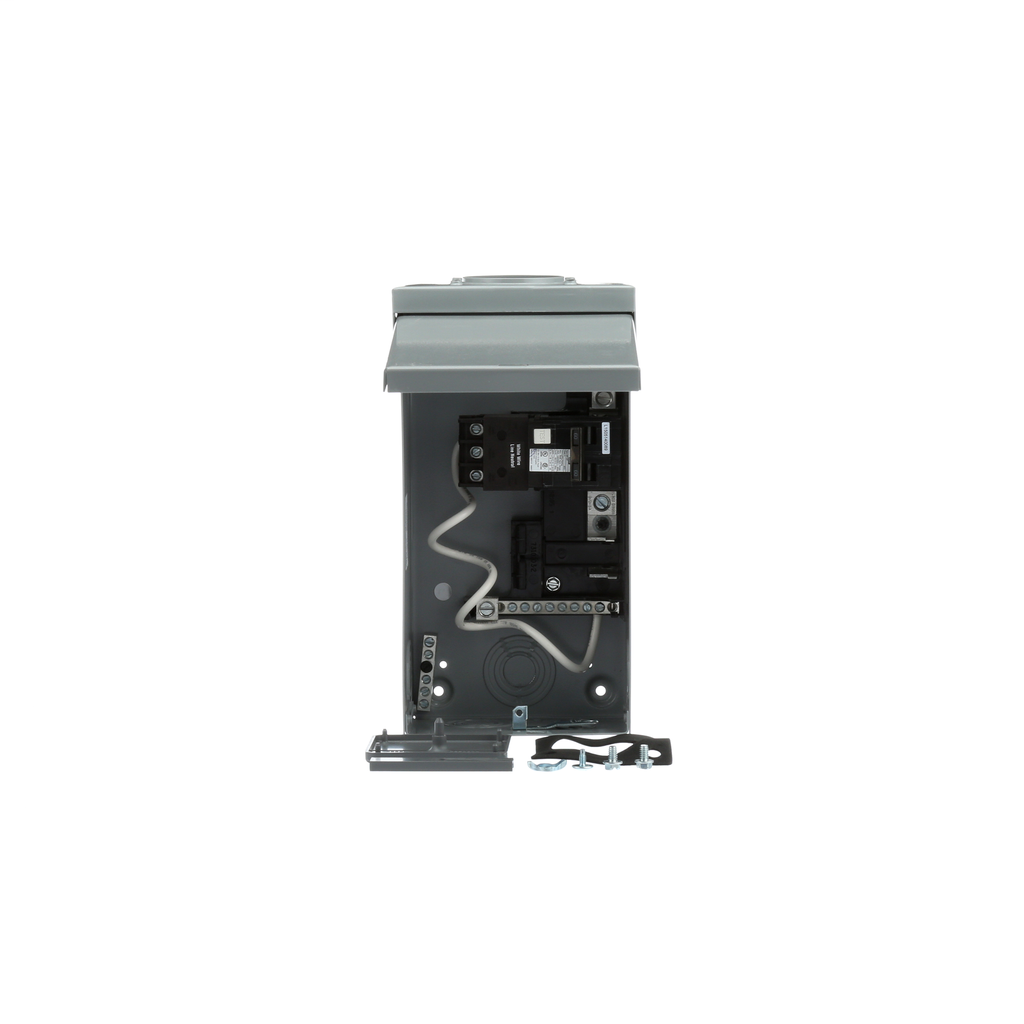

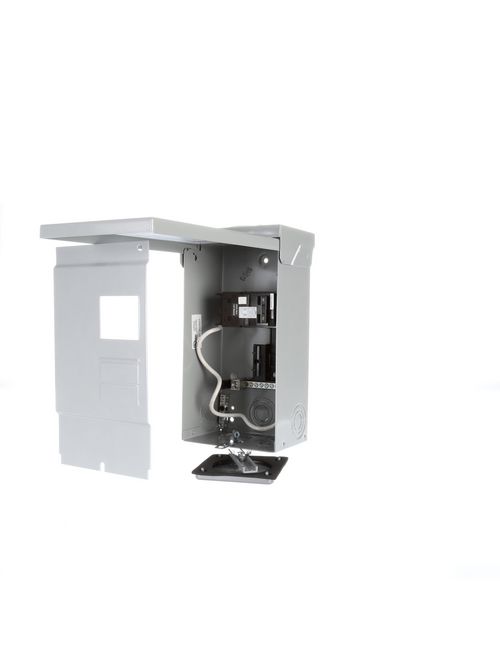

S-A LW004NRSPA60 SPA PANEL, 4 CIRC,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$911.23/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # LW004NRSPA60
North Coast Part # 607157

Features

  • Factory installed Murray 2-pole 60 Amp GFCI included (QF260)
  • 2 extra space branch circuit
  • Interiors offer removal in seconds
  • Single phase

Specifications

  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Ampacity: 125 A
  • Phase number: 1
  • Switching capacity current acc. to EN 60898 rated value: 22000 A
  • Number of width units for installation width: 4
  • Width [in]: 4650500000 in
  • Design of the housing: Outdoor Type 3R
  • Configuration of the busbars: 125A
  • Mounting type: Surface
  • Suitability for operation: Residential
  • Product brandname: Murray

Categories

Overview

GTiN 00040892013047
Width 4650500000 in
Size 465.05
Voltage 120/240 Volt
Applications Residential
Mounting Type Surface
Family Brand Name Murray
Number of Phases 1 Phase
Amperage 125 Amp
Number of Spaces 4
Bus Rating 125A
Interrupt Rating 22000 A
Enclosure OutdoorType3R
Sub Brand Murray
Product UPC 04089201304
