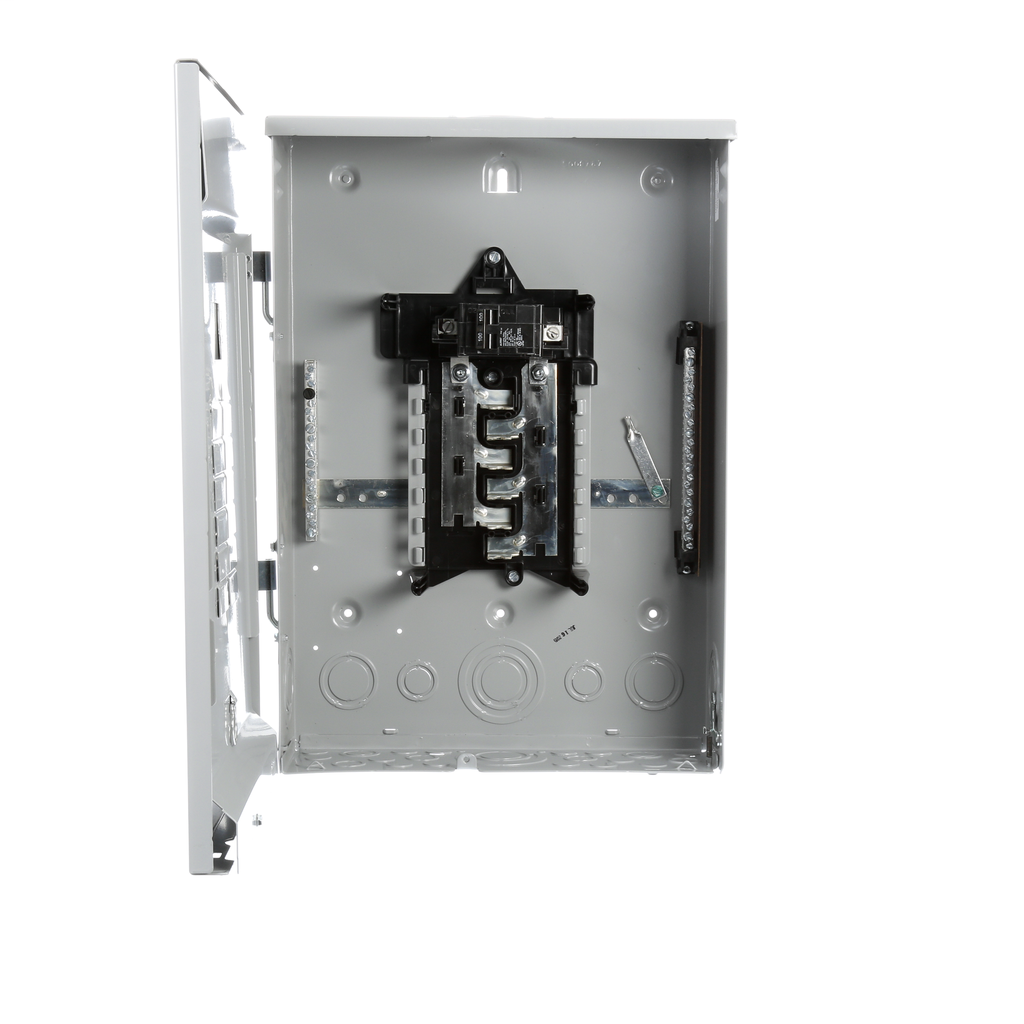

S-A LW1224B1100 100A 1P RT MAIN 12/
Product image thumbnail 0
Product image thumbnail 1
$649.00/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # LW1224B1100
North Coast Part # 212560

Features

  • Type-G90, hot-dipped galvanized carbon steel enclosure offers corrosion resistance
  • Aluminum buss bar
  • Electrostatic polyester-paint powder coating enhances corrosion protection and helps provide a finish free of drips and runs
  • Factory-installed ground bars
  • Trim mounting tabs free up both hands to drive trim screws
  • Tangential knockouts help eliminate the need for conduit offsets
  • Single-phase, 100 Amp, 240-Volt capacity
  • Meets UL and ANSI safety requirements

Specifications

  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Ampacity: 100 A
  • Phase number: 1
  • Switching capacity current acc. to EN 60898 rated value: 22000 A
  • Number of width units for installation width: 12
  • Width [in]: 18685680000 in
  • Certificate of suitability: UL
  • Design of the housing: Outdoor Type 3R
  • Configuration of the busbars: 100A
  • Size of the circuit-breaker: MB
  • Mounting type: Surface
  • Suitability for operation: Residential
  • Product brandname: Murray

Overview

UPC 04089200978
GTiN 00040892009781
Width 18685680000 in
Size 1868.568
Voltage 120/240 Volt
Applications Residential
Mounting Type Surface
Family Brand Name Siemens
Circuit Breaker Type MB
Number of Phases 1 Phase
Amperage 100 Amp
Number of Spaces 12
Bus Rating 100A
Interrupt Rating 22000 A
Enclosure OutdoorType3R
Sub Brand UL
