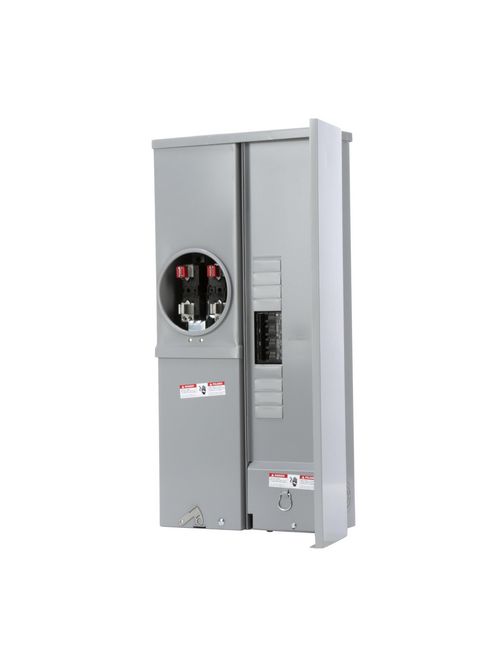

Siemens Industry MC0816B1200EST 120/240 VAC 200 Amp 1-Phase 3-Wire Ring Type Combination Meter Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$370.13/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MC0816B1200EST
North Coast Part # 877792

Specifications

  • Certificate of suitability: EUSERC COMPLIANT
  • Ampacity: 200 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Cable entry type: TOP / BOTTOM
  • Mounting type: SURFACE
  • Suitability for operation: SERVICE ENTRANCE EQUIPMENT
  • Phase number: 1
  • Design of the terminal strip: 4-JAW
  • Number of sockets switchable: 1
  • Number of terminals: 3
  • Product brand name: SIEMENS
  • Product type designation: METER LOAD CENTER - MAIN DISCONNECT COMBINATION
  • Special product feature: FEED THRU LUGS
> View Substitutes (2)

Categories

Overview

UPC 04089299628
GTiN 00040892996289
Size 1
Voltage 120/240 Volt
Mounting Type SURFACE
Family Brand Name Siemens
Number of Phases 1
Amperage 200 Amp
Cable Entry TOP/BOTTOM
Enclosure Ring
Sub Brand Modular Metering
Operating Temperature N/A
Type METERLOADCENTER-MAINDISCONNECTCOMBINATION
Applications SERVICEENTRANCEEQUIPMENT
