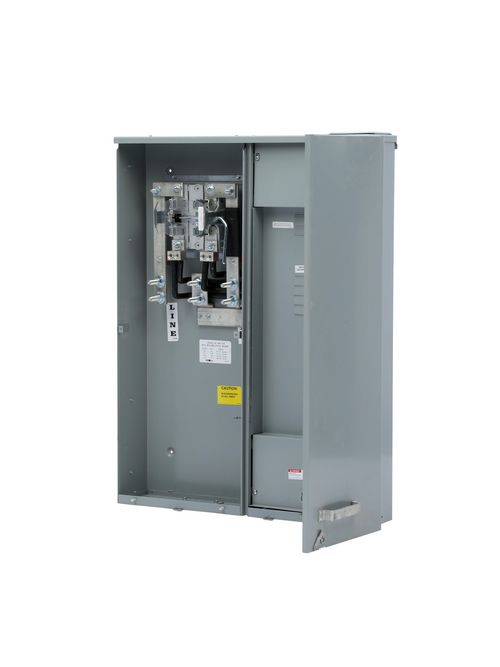

Siemens Industry MC0816B1400SDL 120/240 VAC 320 Amp 1-Phase 3-Wire Ringless Combination Meter Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,545.88/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MC0816B1400SDL
North Coast Part # 754000

Features

  • 22kAIC rated
  • Pad locking provisions on all devices
  • Contact local utility to confirm meter socket approval
  • UL listed

Specifications

  • Certificate of suitability: EUSERC COMPLIANT
  • Ampacity: 400 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Cable entry type: BOTTOM
  • Mounting type: SURFACE
  • Suitability for operation: SERVICE ENTRANCE EQUIPMENT
  • Phase number: 1
  • Design of the terminal strip: 4-JAW
  • Number of sockets switchable: 1
  • Number of terminals: 3
  • Product brand name: SIEMENS
  • Product type designation: METER LOAD CENTER - MAIN DISCONNECT COMBINATION
  • Special product feature: 2 MAIN CIRCUIT BREAKER PROVISIONS

Overview

UPC 04089227758
GTiN 00040892277586
Size 1
Voltage 120/240 Volt
Mounting Type SURFACE
Family Brand Name Siemens
Number of Phases 1 Phase
Amperage 400 Amp
Cable Entry BOTTOM
Enclosure Ringless
Sub Brand Meter Combos
Operating Temperature N/A
Type METERLOADCENTER-MAINDISCONNECTCOMBINATION
Applications SERVICEENTRANCEEQUIPMENT
