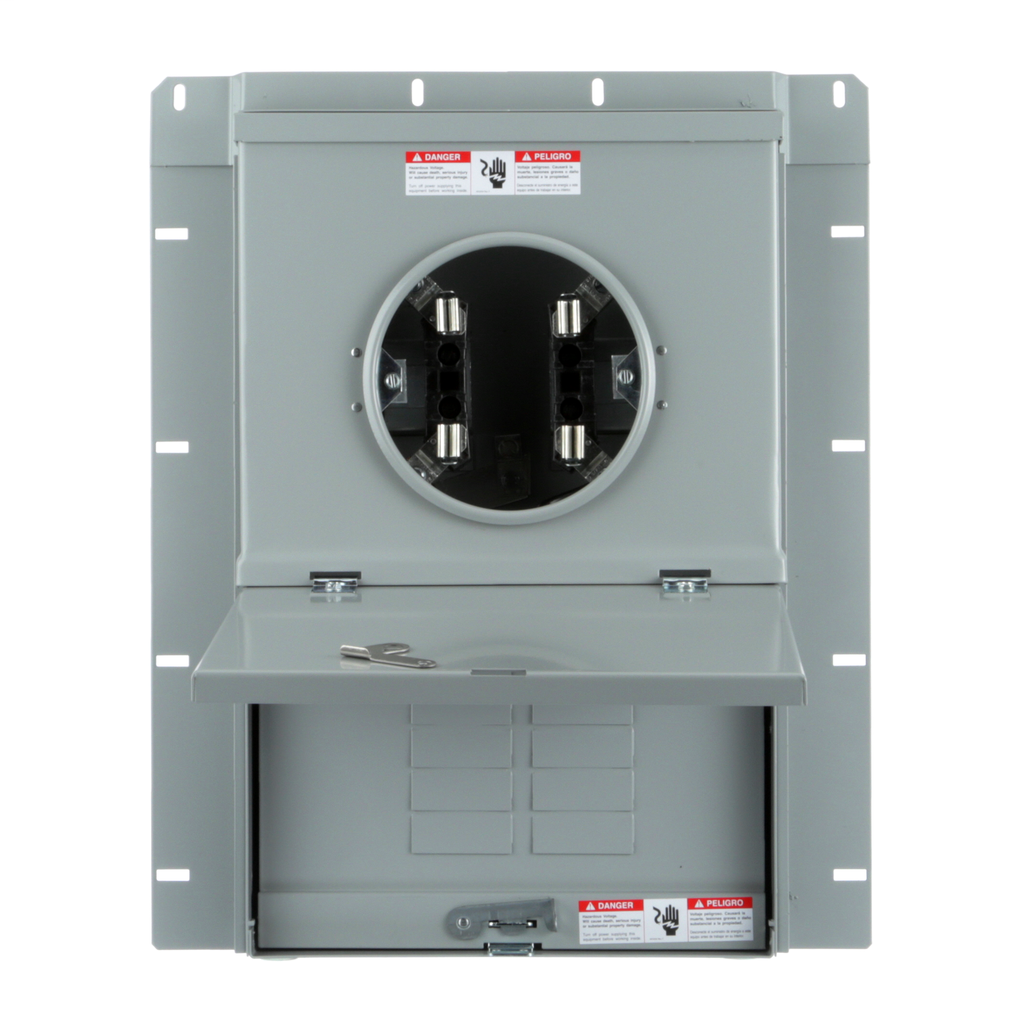

S-A MC1020B1100F MC 10S/20C 100A 4J
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$194.34/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MC1020B1100F
North Coast Part # 877793

Features

  • Siemens meter load center combinations offer several different configurations and include a meter socket section and a load center section, these combos feature a cost effective construction that is preferable in non-EUSERC areas
  • Over-under combination construction these Siemens meter load center combinations feature an over-under configuration with a unique trough allowing service from either overhead or underground to the device
  • Over-under construction, these Siemens meter load center combinations feature a classic over-under construction but are for overhead feed only
  • Siemens EUSERC meter load center combinations offer several different configurations to meet a variety of installer demands, these Siemens combos feature designs that meet EUSERC requirements
  • UL listed

Specifications

  • Certificate of suitability: EUSERC COMPLIANT
  • Ampacity: 100 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Cable entry type: TOP / BOTTOM
  • Mounting type: FLUSH
  • Suitability for operation: SERVICE ENTRANCE EQUIPMENT
  • Phase number: 1
  • Design of the terminal strip: 4-JAW
  • Number of sockets switchable: 1
  • Number of terminals: 3
  • Product brand name: SIEMENS
  • Product type designation: METER LOAD CENTER - MAIN DISCONNECT COMBINATION
  • Special product feature: 2 MAIN CIRCUIT BREAKER PROVISIONS

Overview

UPC 04089299974
GTiN 00040892999747
Size 1
Voltage 120/240 Volt
Mounting Type FLUSH
Family Brand Name Siemens
Number of Phases 1 Phase
Amperage 100 Amp
Cable Entry TOP/BOTTOM
Enclosure Ring
Sub Brand Meter Combos
Operating Temperature N/A
Type METERLOADCENTER-MAINDISCONNECTCOMBINATION
Applications SERVICEENTRANCEEQUIPMENT
