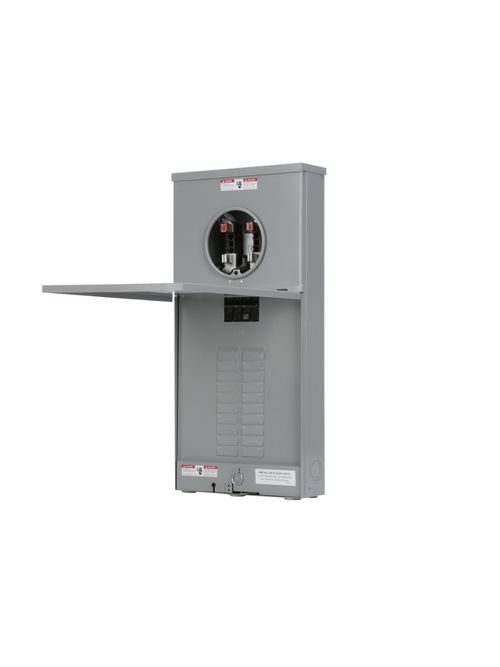

S-A MC2040B1200S MC 20S/40C 200A 4J

Features

• Siemens meter load center combinations offer several different configurations and include a meter socket section and a load center section, these combos feature a cost effective construction that is preferable in non-EUSERC areas
• Siemens EUSERC meter load center combinations offer several different configurations to meet a variety of installer demands, these Siemens combos feature designs that meet EUSERC requirements
• Accessories for meter combo devices include a variety of common kits and parts to allow the installer to configure the installation as needed for the application
• Types of accessories available: 5th jaw assemblies, interchangeable hubs, sealing rings, lugs for sockets with stud terminals, miscellaneous other neutral kits and covers
• Contact local utility to confirm meter socket approval

Specifications

• Certificate of suitability: EUSERC COMPLIANT
• Ampacity: 200 A
• Supply voltage frequency rated value 50/60 Hz: TRUE
• Voltage between phase and Ground (GND) rated value: 120 V
• Voltage between phase and phase rated value: 240 V
• Cable entry type: TOP / BOTTOM
• Mounting type: SURFACE
• Suitability for operation: SERVICE ENTRANCE EQUIPMENT
• Phase number: 1
• Design of the terminal strip: 4-JAW
• Number of sockets switchable: 1
• Number of terminals: 3
• Product brand name: SIEMENS
• Product type designation: METER LOAD CENTER - MAIN DISCONNECT COMBINATION
• Special product feature: 2 MAIN CIRCUIT BREAKER PROVISIONS
