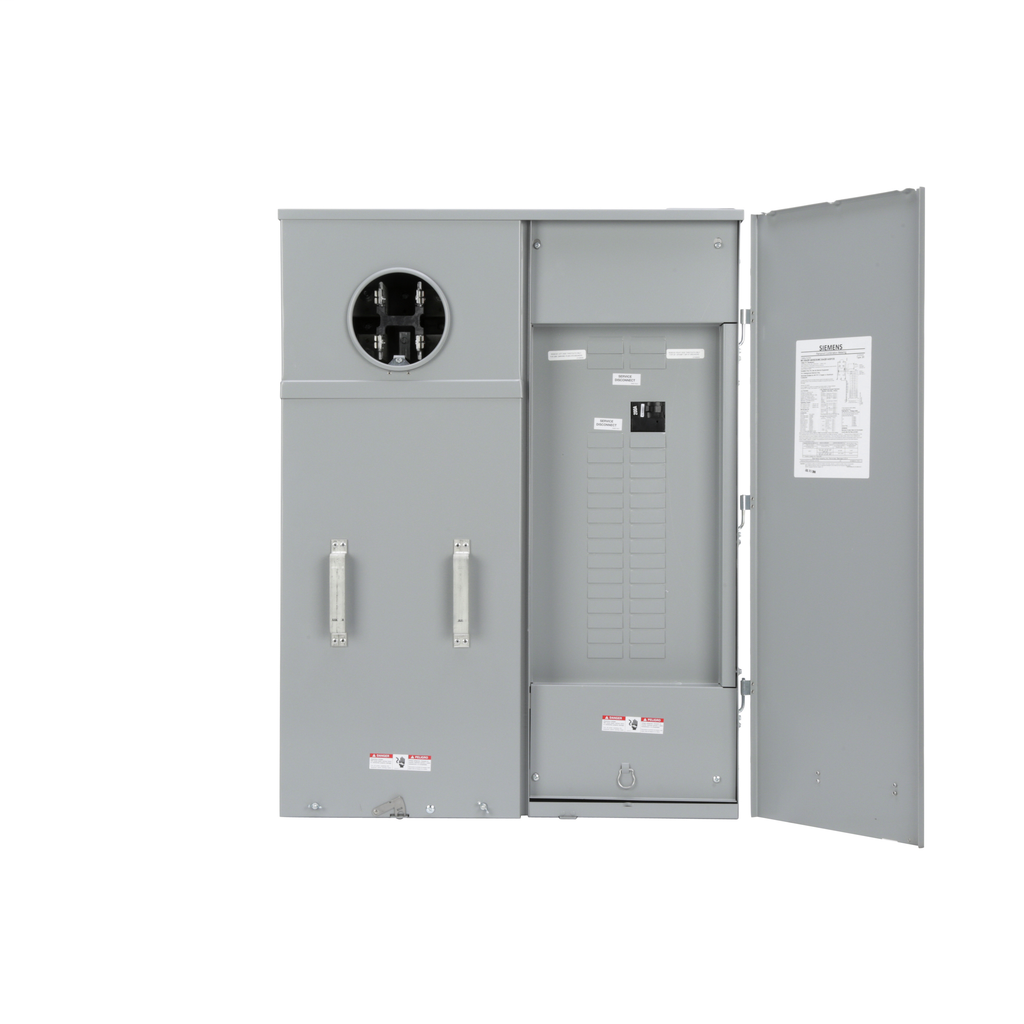

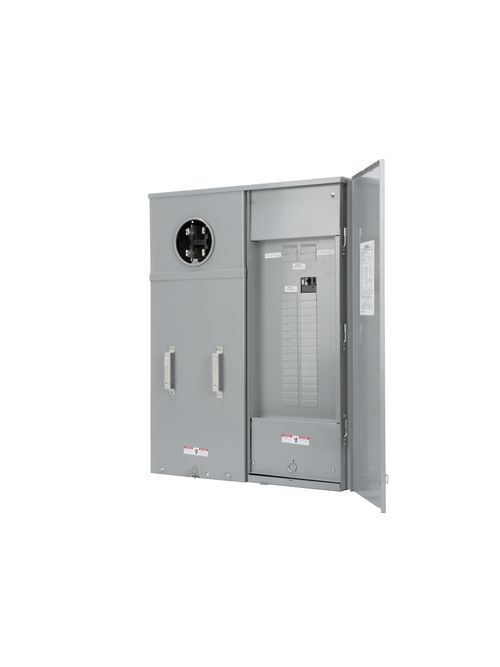

Siemens Industry MC3042B1400SDS 120/240 VAC 400 Amp 1-Phase 3-Wire Combination Meter Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,505.86/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MC3042B1400SDS
North Coast Part # 345427

Features

  • For use as a combination meter socket and main breaker load center in underground service applications
  • Suitable for use as service entrance equipment
  • G90 hot-dipped galvanized carbon-steel enclosure helps provide corrosion protection
  • Electrostatically powder-coated polyester paint for corrosion protection and a great-looking finish free of drips and runs
  • Side-by-side enclosure with a side-hinged door that can be easily removed
  • Copper buss bar for excellent conductivity
  • Factory-installed, 200 Amp main breaker
  • Provision for a field-installed, 200 Amp maximum main disconnect (disconnect not included)
  • Underground feed with HD type hub provisions (hub sold separately)
  • Ring-type meter socket

Specifications

  • Certificate of suitability: EUSERC COMPLIANT
  • Ampacity: 400 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Cable entry type: BOTTOM
  • Mounting type: SURFACE
  • Suitability for operation: SERVICE ENTRANCE EQUIPMENT
  • Phase number: 1
  • Design of the terminal strip: 4-JAW
  • Number of sockets switchable: 1
  • Number of terminals: 3
  • Product brand name: SIEMENS
  • Product type designation: METER LOAD CENTER - MAIN DISCONNECT COMBINATION
  • Special product feature: 2 MAIN CIRCUIT BREAKER PROVISIONS

Categories

Overview

UPC 78364395094
Item Long Description The Siemens 400 Amp 30-Space 42-Circuit Combination Meter Socket and Main Breaker Load Center has a ring-type meter and is intended for use in underground service applications. The unit features a factory-installed, 200 Amp main breaker with a provision for a field-installed, 200 Amp maximum main disconnect (disconnect not included). This ANSI-certified and UL-listed combination center is suitable for use as service entrance equipment and has a manual plug-in test-block bypass.
GTiN 00783643950948
Size 1
Voltage 120/240 Volt
Mounting Type SURFACE
Family Brand Name Siemens
Number of Phases 1 Phase
Amperage 400 Amp
Cable Entry BOTTOM
Enclosure Ring
Sub Brand Meter Combos
Type METERLOADCENTER-MAINDISCONNECTCOMBINATION
Applications SERVICEENTRANCEEQUIPMENT
