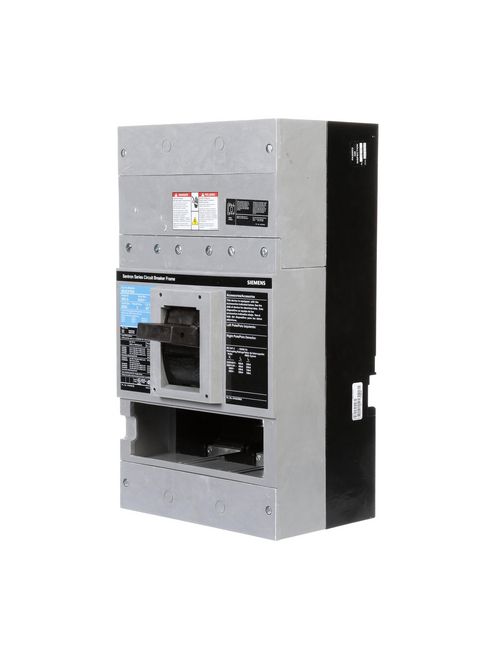

Siemens Industry MD63B800 3-Pole 800 Amp 600 Volt 25 kA Molded Case Circuit Breaker
$17,684.18/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MD63B800
North Coast Part # 485625

Overview

UPC 78364321448
Item Long Description SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER MD FRAME WITH STANDARD BREAKING CAPACITY. 800A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). INTERCHANGEABLE TRIPUNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA3K500) WIRE RANGE 1/0AWG - 500KCMIL (CU/AL). DIMENSIONS (W x H x D) IN 9.00 x 16.0 x 6.00.
GTiN 00783643214484
Length 10 in
Width 12 in
Operating Temperature 40 C
Voltage 600 Volt
Type MD6
Applications Standard 40C Breaker
Height 19 in
Standard HACR
Frequency 50/60 Hz
Family Brand Name Siemens
Frame MD
Actuator Varying
Amperage 800 Amp
Trip Type Thermal-Magnetic
Number of Poles 3 Pole
Interrupt Rating 25 kA
Enclosure Varying
Trip Range 4000-8000
Sub Brand Sentron
TC Connection N/A
Load Rating N/A
