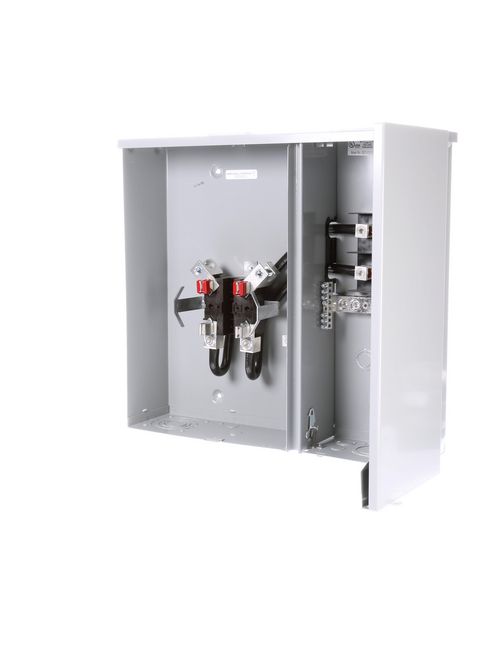

S-A MM0406L1200RGA MM LUG 4S/6C 200
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$313.68/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MM0406L1200RGA
North Coast Part # 1279796

Features

  • For use only as service equipment
  • G-90 galvanized steel construction
  • Tin-plated aluminum buss bar
  • NEMA type-3R enclosure
  • Single-phase, 200 Amp 240-Volt maximum
  • Designed to meet Georgia power requirements
  • Meets UL and ANSI safety requirements
  • Side by side construct
  • Contact local utility to confirm meter socket approval

Specifications

  • Certificate of suitability: UL
  • Ampacity: 200 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Cable entry type: TOP / BOTTOM
  • Mounting type: SURFACE
  • Suitability for operation: SERVICE ENTRANCE EQUIPMENT
  • Phase number: 1
  • Design of the terminal strip: 4-JAW
  • Number of sockets switchable: 1
  • Number of terminals: 3
  • Product brand name: SIEMENS
  • Product type designation: METER MAIN DISCONNECT

Overview

UPC 78364395899
GTiN 00783643958999
Size 1
Voltage 120/240 Volt
Mounting Type SURFACE
Family Brand Name Siemens
Number of Phases 1 Phase
Amperage 200 Amp
Cable Entry TOP/BOTTOM
Enclosure Ringless
Sub Brand Meter Combos
Operating Temperature N/A
Type METERMAINDISCONNECT
Applications SERVICEENTRANCEEQUIPMENT
