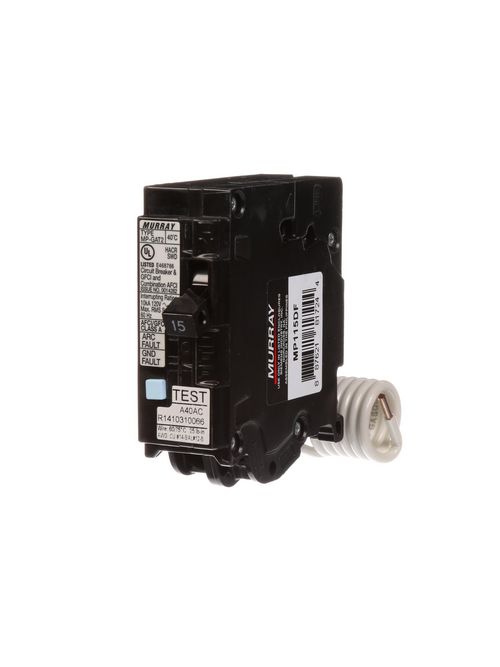

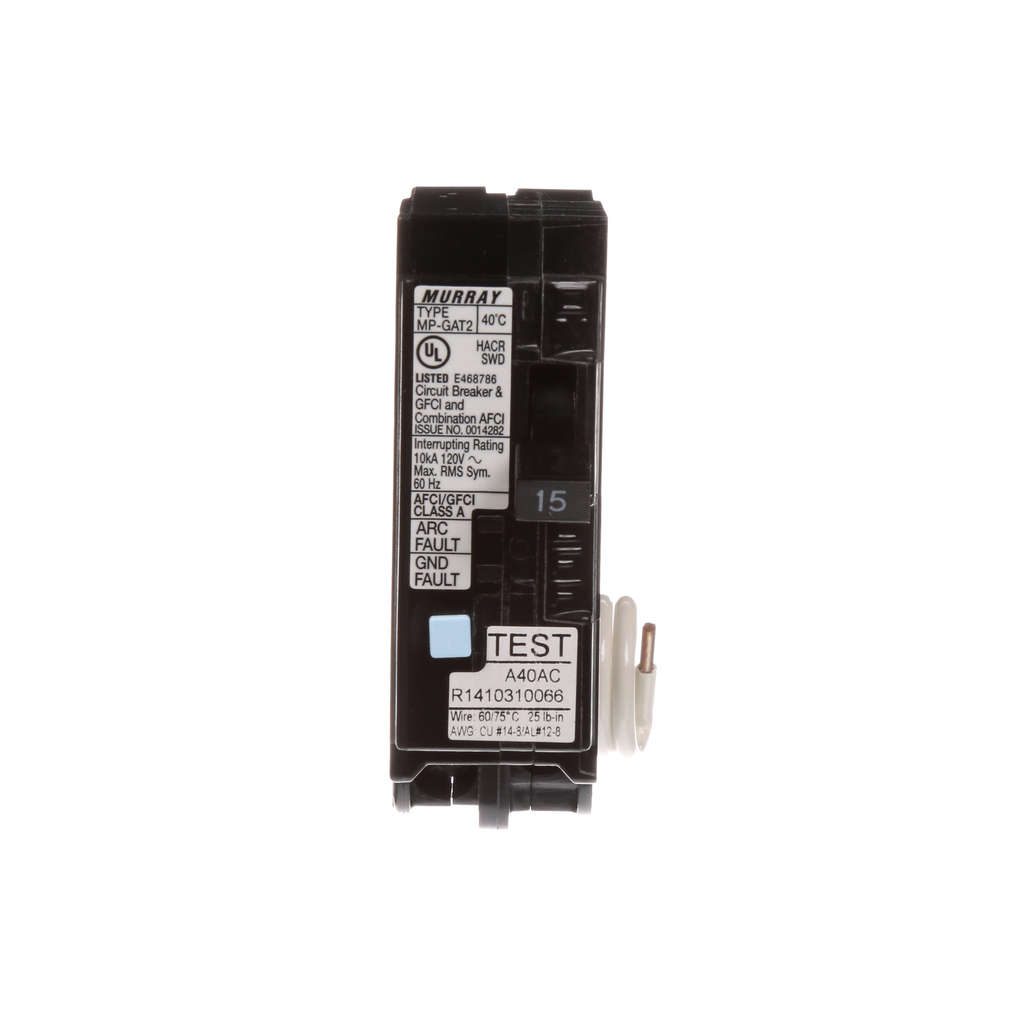

S-A MP115DFP BK MP-GAT2 AFCI/GFCI 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$118.94/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MP115DFP
North Coast Part # 1165468

Features

  • Faster installation compared to installing an AFCI breaker and GFI receptacle
  • Lower cost compared to AFCI breaker and GFCI receptacle
  • Self-test feature as required by UL 943 effective June 2015
  • Siemens exclusive LED trip indicator pinpoints cause of trip
  • HACR, SWD, 120-Volt AC rated
  • Wire range: #14-#8 AWG copper or #12-#8 AWG aluminum

Specifications

  • Standard: UL
  • Continuous current rated value: 15 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: PERSONEL / PARALLEL AND SERIES ARCING PROTECTION
  • Number of poles: 1
  • Design of the product: MP-GAT2
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: MURRAY
  • Type of connectable conductor cross-sections at AWG conductors: 14 - 8AWG (CU) / 12 - 8AWG (AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 88762181728
Item Long Description The Dual Function Circuit Breaker combines Class A 5mA GFCI and Combination Type AFCI, protecting against both Arc Faults and Ground Faults. This, along with the new Self-Test feature, makes it the first in class in electrical safety for homeowners. The 2014 National Electrical Code (NEC) requires both Arc Fault and Ground Fault protection on kitchen and laundry circuits. Before the release of Dual Function Circuit Breakers, the only option to comply with this code was to pair an AFCI circuit breaker with a GFCI receptacle. The Dual Function Circuit breaker combines these 2 devices into once solution that provides both cost savings and less hassle in installation and maintenance. This is a win solution for everyone. Testing GFCI's and AFCI's on a monthly basis is a good idea that is sometimes forgotten. Underwriters Laboratories (UL) suggests that AFCI/GFCI devices be tested every 30 days after installation to ensure they are properly working. Now the new Self-Test feature enables the
GTiN 00887621817282
Length 1 in
Width 6.000
Voltage 120 Volt
Type MP-GAT2
Applications PERSONEL/PARALLELANDSERIESARCINGPROTECTION
Height 6.5 in
Connection Type Plug-In
Family Brand Name Siemens
TC Connection PLUG-IN
Number of Poles 1 Pole
Interrupt Rating 10 A
Trip Range Thermal Magnetic
Operating Temperature N/A
Frame N/A
Actuator N/A
Trip Type THERMAL-MAGNETIC
Load Rating N/A
Enclosure N/A
Sub Brand N/A
Conductor Size 14-8AWG(CU)/12-8AWG(AL)
